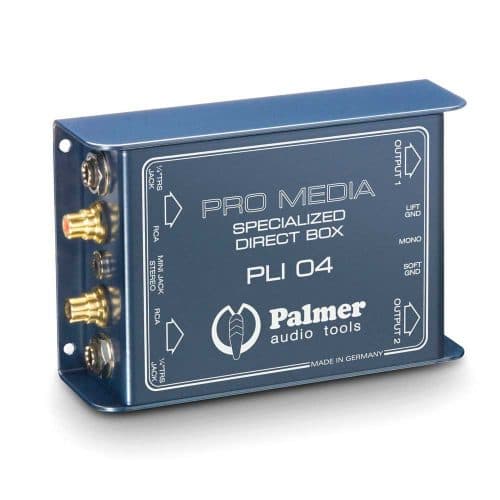

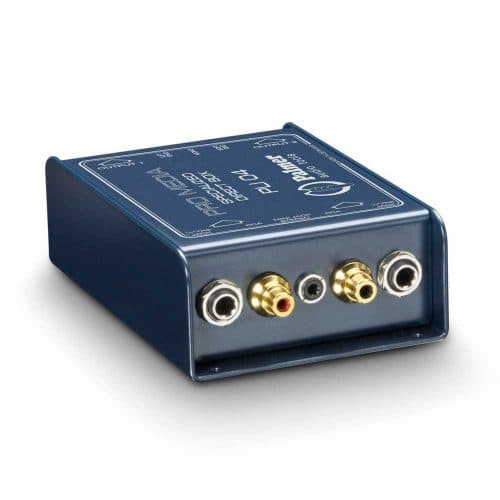

Palmer PLI04 Media DI Box 2-Channel for PC and Laptop



Palmer PLI04

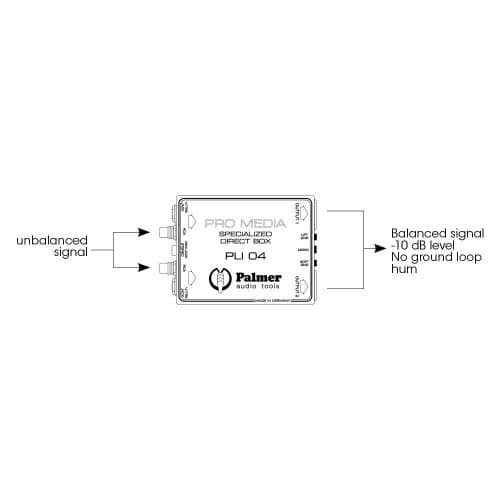

The Palmer PLI04 brings you a 2-Chanel DI Box that provides compatibility between computers and professional equipment. It's a dedicated interface which feeds unbalanced stereo audio from a USB port to balanced mic inputs on mixing consoles. The PLI04USB supports both 44.1, 48, and 96 kHz sample rates and provides high-quality D/A conversion with 24-bit resolution. The signal output is also transformer balanced on standard wiring male XLR connectors; with individual isolating switches for both left and right channels. What's more, the PLI04 features a mono summing switch. Effectively doubling as a signal splitter capable of routing the mono signal to separate systems. Finally, the PLI04 features a headphone output with level control. So you have a means of convenient monitoring and a ground lift.

Spec

Product type: Line Isolators

Channels: 2

Inputs: 5

Input connectors: 3.5 mm TRS , 6.3 mm jack , RCA

Input type: unbalanced

Input impedance: (at 600 ohms load) 6 k Ohm(s)

Max. input level: + 6 dBu

Outputs: 2

Output connectors: XLR

Output type: balanced

Output impedance: 600 Ohm(s)

Max. output level: + 6 dBu

Transformer balanced: Yes

Ratio: 3.16 : 1

Frequency response: 20 – 20.000 Hz

Controls: ground lift , mono/stereo

Cabinet material: sheet steel

Cabinet surface: Powder coated

Width: 140 mm

Depth: 95 mm

Height: 35 mm

Weight: 0,699 kg
