Palmer PLI04USB 2 Channel USB DI Box and Line Isolator
Palmer PLI04USB

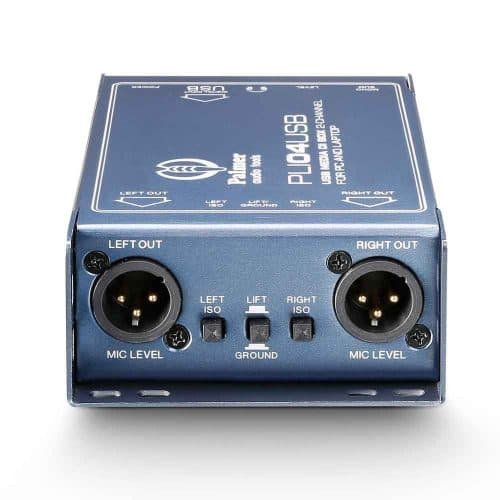

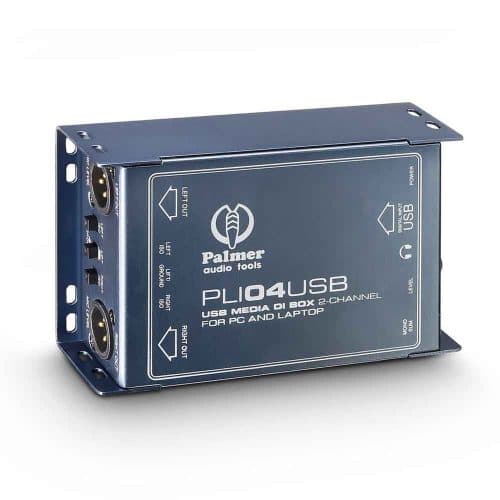

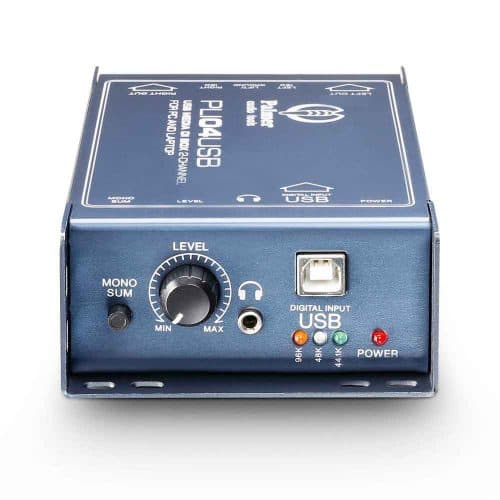

The Palmer PLI04USB brings you a 2-Chanel, USB DI Box that provides compatibility between computers and professional equipment. It's a dedicated interface which feeds unbalanced stereo audio from a USB port to balanced mic inputs on mixing consoles. The PLI04USB supports both 44.1, 48, and 96 kHz sample rates and provides high-quality D/A conversion with 24-bit resolution. The signal output is also transformer balanced on standard wiring male XLR connectors; with individual isolating switches for both left and right channels. What's more, the PLI04USB features a mono summing switch. Effectively doubling as a signal splitter capable of routing the mono signal to separate systems. Finally, the PLI04USB features a headphone output with level control. So you have a means of convenient monitoring and a ground lift.
Features
- Dedicated USB to pro audio interface
- High-quality 24-bit D/A converter with 44.1, 48 and 96 kHz sample rates
- Transformer balanced 3-pin XLR outputs
- Individual L and R isolating switches
- Mono summing with signal splitter function
- Headphones output with level control
Spec
Product type: Line Isolators
Channels: 2
Inputs: 1
Input connectors: 1 : 2 , 41000 , via USB port
Outputs: 3
Output connectors: 3.5mm TRS , XLR
Output impedance: 550 Ohm(s) , headphones 43 Ohms Ohm(s)
Frequency response: 10 – 41000 Hz
Transformer balanced: Yes
Ratio: 1 : 2
Cabinet material: Aluminum
Cabinet surface: Powder coated
Width: 140 mm
Depth: 95 mm
Height: 35 mm
Weight: 0.68 kg
