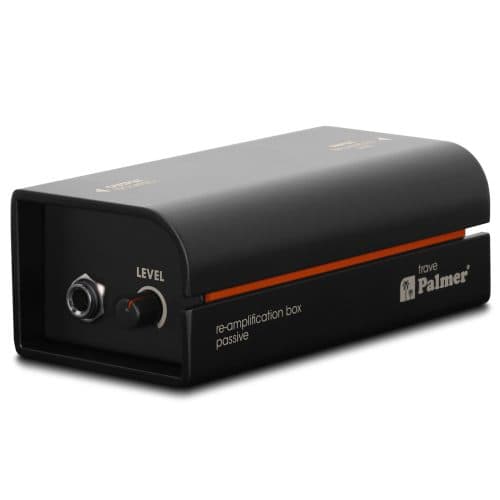

Palmer TRAVE Passive Re-Amplification Box
Palmer TRAVE Passive Re-Amplification Box
Above all, the Palmer trave is a passive re-amping box that requires no external power supply. Inside the trave is a special transformer that converts the balanced line signal into an unbalanced Hi-Z signal. Specifically, it does so with perfectly matched impedance for your guitar amplifier or effect pedal.
Prevents Ground Loops
At the same time, the trave prevents ground loops, which are otherwise almost unavoidable. The input of this reamping box allows you to switch between consumer (-10 dBV) and professional (+4 dBu) levels, and the output level is continuously adjustable, so you can drive your amp or pedals just the way you like it.
Add New Creative Sounds
Also, with the Palmer trave passive re-amplification box, you can add new creative sounds and timbres to your music and ultimately be true to your sound.
TRAVE Key Highlights:
- For routing your signal from the DAW or mixer to your guitar- or bass amplifier
- Prevents ground loop hum, ground lift switch
- Converts balanced line signal to unbalanced instrument signal
Features
- For routing your signal from the DAW or mixer to your guitar- or bass amplifier
- Prevents ground loop hum, ground lift switch
- Converts balanced line signal to unbalanced instrument signal
- Optimal impedance matching
- Retains your sound clean and pure
- Switchable input level – 10dBV/+4 dBu
- Output level continuously adjustable
- Passive operation, no power supply required
- Solid casing made of aluminium and steel
- Incl. rewritable tour label for attachment onto the back of the trave
- Engineered in Germany
Spec
Product type: DI box
Type: passive
Channels: 1
Transformer isolated: Yes
Inputs: 1
Input type: balanced
Input connectors: XLR
Outputs: 1
Output type: unbalanced
Output connectors: 6.3 mm jack
Ground lift switch: yes
More features: Input Level Switch, Output Level Potentiometer
Housing material: Aluminium continuous casting
Height: 140 mm
Width: 50 mm
Depth: 68 mm
Ambient temperature (in operation): -20 – 70 °C
Relative Humidity: < 80% (non-condensing)
Accessories (included): Inscription label (tour label), rubber feet
Weight: 0.395 kg
