Pioneer DJM-V10 LF 6 Channel Professional DJ Mixer Long Faders

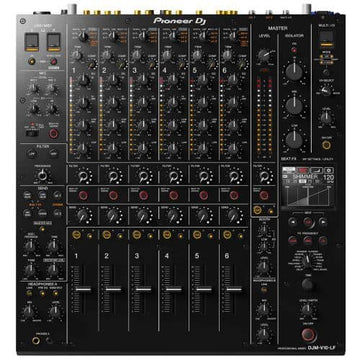

Pioneer DJM-V10 LF
The Pioneer DJM-V10-LF brings you the same 6-Channel Mixer as the DJM-V10 with no crossfader and new, longer faders. Combined with optimised curves and a new custom-designed curve preset to allow you to perform smooth and accurate mixes.
With 60 mm shaft slide faders, the DJM-V10-LF lets you control the volume of each channel precisely. While a new fader curve setting has been added to the unit. The faders have also been appropriately weighted in order to enhance the potential offered by their elongated range.
All the other features on this DJ Mixer remain the same as the DJM-V10; growing rapidly in popularity with creative DJs since it was launched early 2020. A 6 channel DJ Mixer, the DJM-V10-LF is packed with features to bring energy and presence to your next mix.
60 MM SHAFT SLIDE FADERS
For performing smooth and detailed mixes, the DJM-V10-LF offers a high level of control. Removing the crossfader and adding brand new 60mm shaft slide faders to replace the 45mm ones.
UNIQUE FADER CURVE
Including two classic fader curves, the DJM-V10-LF is optimized to make the most of the extra length. While the all-new curve preset lets you fine-tune adjustments and precisely control the output sound.
ELITE SOUND QUALITY
Boasting studio-quality 64-bit mixing and dithering processing; 32-bit AD/DA converters; low-jitter clock circuit; and many other components; the DJM-V10-LF produces a full low-end, vibrant mids, as well as precise highs.
6 CHANNELS WITH A WIDE RANGE OF INPUTS
Create your perfect DJ setup thanks to 6 channels and a host of different input types.
4-BAND EQ AND COMPRESSOR
What’s more, using the brand new 4-Band EQ, you can take full control of your mix. While a built-in compressor allows for even further adjustment of the loudness of your tracks.
EFFECTS FOR MORE CREATIVE EXPRESSION
Finally, with an expanded send/return section; you can add external FX and combine them with built-in FX. So you can create unique sounds and endless possibilities.
Features
- Longer Faders
- Elite sound quality
- Six channels
- 4-band EQ
- New filter with dedicated knob on each channel
- Send/return section
- 3-band master isolator
- Compressor knob on each channel
- Dual headphones output and booth EQ
- Support for external devices, apps, and services
- Lockable power cable
- DIN Midi out
Spec
Width 437.6 mm
Height 107.9 mm
Depth 467 mm
Weight 11.9 kg
Frequency Range 20 – 40000 Hz
Sampling Rate 96 kHz
A/D Converter 32 bit
D/A Converter 32 bit
S/N Ratio Line 105 dB
S/N Ratio Phono 88 dB
S/N Ratio Mic 79 dB
Distortion < 0.005 % (LINE)
EQ 4 band
EQ Range [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
COMP Yes
Channels 6
- Filter • HPF
- LPF
- SEND • Short Delay
- Long Delay
- Dub Echo
- Reverb
- 2 Externals (1/4-inch TS jack)
- MULTI I/O • 1/4-inch jack
- USB (Type A)
- Beat FX
- Delay
- Echo
- Ping Pong
- Spiral
- Helix
- Reverb
- Shimmer
- Flanger
- Phaser
- Filter
- Trans
- Roll
- Pitch
- Vinyl Brake
FX Frequency Yes
X-PAD Yes
rekordbox Quantize Yes
Master Isolator Yes
Crossfader Type Magvel Fader
CURVE Assignable Yes
Fader Curve 3
Mic
- Mic Connection • XLR / 1/4-inch Jack Combo
- 1/4-inch TRS Jack
Talkover 3 Position Switch
Talkover Attenuator Yes
Terminals
- Inputs • 6 DIGITAL (Coaxial)
- 6 LINE (RCA)
- 4 PHONO (RCA)
- Send/Return • 3 SEND (1/4-inch TS jack)
- 3 RETURN (1/4-inch TS jack)
LAN 1
- USB • 2 USB B ports
- 1 USB A port
- Outputs • 2 MASTER (XLR, RCA)
- 1 BOOTH (1/4 inch TRS Jack)
- 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
- 1 REC OUT (RCA)
- 1 DIGITAL (AES/EBU)
- 1 MIDI (DIN)
