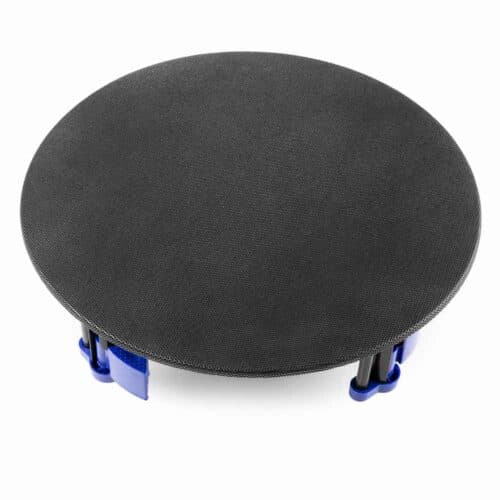

Power Dynamics NCSS8B – Low Profile Ceiling Speaker 2-way 8″ Inch Black

The Power Dynamics NCSS8B is an 8″ Inch High Power Ceiling Speaker in Black that offers superior HiFi sound quality. With an Output Power RMS: of 40Watts, the NCSS8B offers a frequency response between 40Hz – 20kHz.

Power Dynamics NCSS8B Low Profile Ceiling Speaker 2-way 8″ Inch Black

The Power Dynamics NCSS8B is an 8″ Inch High Power Ceiling Speaker in Black that offers superior HiFi sound quality. With an Output Power RMS: of 40Watts, the NCSS8B offers a frequency response between 40Hz – 20kHz. The speaker features a ½’’ Mylar Tweeter and an 8’’ Ferrite Magnet Woofer. This combination provides you with an SPL (Sound Pressure Level) of 92dB that delivers rich high-quality audio. The NCSS8B is a Passive 2-Way Coaxial Speaker with an impedance of 8 Ohms that requires amplification.

The speaker has a quick fit system that offers fast and easy assembly. Furthermore, the speaker features a Black Magnetic Fit Steel Grille that provides you with a slim and discrete low-profile sleek finish. This makes the NCSS8B ideal for use in your living room, veranda, garage, showroom, cafe or restaurant.

Simple Installation

Installation of the NCSS8B is straightforward and simple. All you have to do is drill a hole in the ceiling big enough to fit the speaker. If the PA system is turned on, turn it off before making any connections. Once turned off, connect the speaker via two cables to the sound system.

The speaker then fits into the ceiling hole and you use the swivel clamps to secure the speaker. The locking tabs will then swivel into the rear surface and lock the speakers into place. Lastly, place the Black metal grille over the speaker for a discrete low-profile sleek finish.

If you are connecting several NCSS8B speakers, make sure that all speakers have the same polarity and that the amplifier is not overloaded. The polarity is conveniently identifiable by Black (Negative Pole) and Red (Positive Pole). It is a good idea to clarify how many speakers you would like to install in the room prior to installation.

This Ceiling Speaker is also available as the NCSS5B (Low Profile Ceiling Speaker 2-way 5.25″ Inch Black) and NCSS6B (Low Profile Ceiling Speaker 2-way 6.5″ Inch Black).

Features

• High power ceiling speaker with superior HiFi sound
• Magnetic fit steel grille
• Slim low-profile speaker grille for a sleek finish
• 2-Way coaxial speaker
• 8 Ohm version
• Supplied per piece
• Colour: Black

Spec

Power RMS: 40Watt

Colour: Black (Magnetic fit steel grille)

Product Code SKU: 952.620

Frequency response: 40Hz – 20kHz

SPL @ 1W/1m: 92dB

Woofer: 5.25’ Ferrite

Tweeter: ½’’ Mylar

Mounting depth: 87mm

Mounting diameter: 229mm
