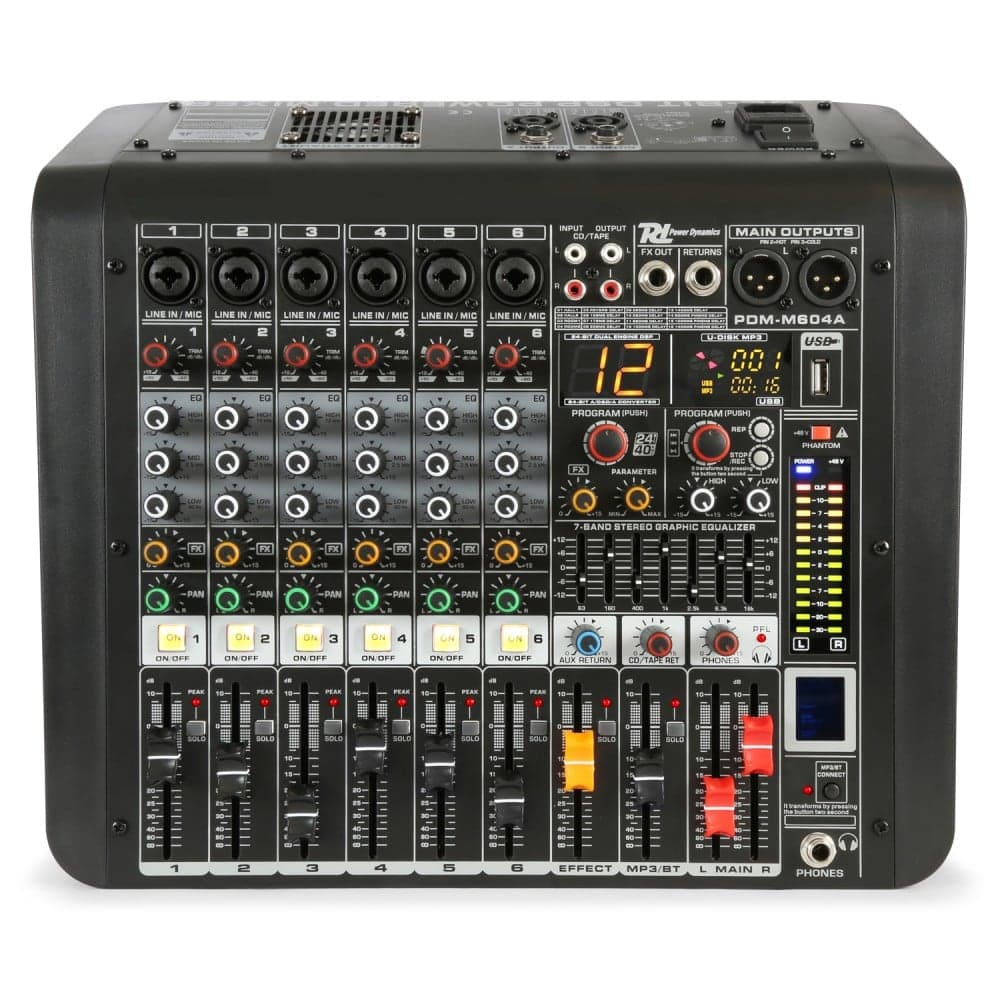

Power Dynamics PDM-M604A 6 Channel Powered Mixer BT



Power Dynamics PDM-M604A

The Power Dynamics PDM-M604A is a compact and professional 6 Channel powered PA mixer. Delivering great sound and versatility for your next gig or event. Each mixer channel includes a high-quality and low noise mic preamp with LINE in functionality for dual use. The body of the mix uses a familiar layout and signal flow with gain control, 3-band parametric EQ per channel, FX/AUX send, and L/R pan. An integrated power amplifier allows you to connect and power your passive speaker with a 2x 200W RMS output. Everything you need to create a great mix. The PDM-M604A also includes an integrated 24-bit digital FX processor with 16 presets, USB Media player/recorder, and Bluetooth receiver for streaming your favourite music. Perfect for a wide range of stages, bands, venues, and more.

Features

• 6 Balanced mono microphone-/line input (Combi XLR/Jack)
• +48V phantom power with individual preamp per channel
• Stereo line input (RCA)
• Multi-FX processor with 16 presets
• Solo switch per channel (PFL)
• On/off switch per channel
• Hi, Mid and Low control for each channel
• Adjustable FX volume per channel
• Adjustable Pan per channel
• Stereo balanced main outputs (XLR)
• Separate headphones and stereo rec outputs
• 7-Band equalizer
• Built-in 2x 200W RMS Amplifier
• Built-in USB player with digital display
• BT-receiver for audio streaming
• LED VU meter and Peak LED’s

Spec

Power Continue: 2x 200W rms
Output power: 400W
Frequency response: 10Hz -45kHz (±3dB)
THD: <0.01%
DSP Resolution: 24-bit
Type of effects: Hall, Room, Reverb delay, Delay, Echo, Ping pong delay
Presets: 16
Signal to noise ratio: >112dB
Output level: +/- 1V
Input:Line: +/- 150mV
Input:Mic: +/- 1.5mV
Power supply: 100-240VAC / 50-60Hz
Dimensions: 364 x 350 x 120mm
Weight: 7.9kg
