Power Dynamics PDM-S804 PA Mixer 8 Channel FX and BT MP3 Player

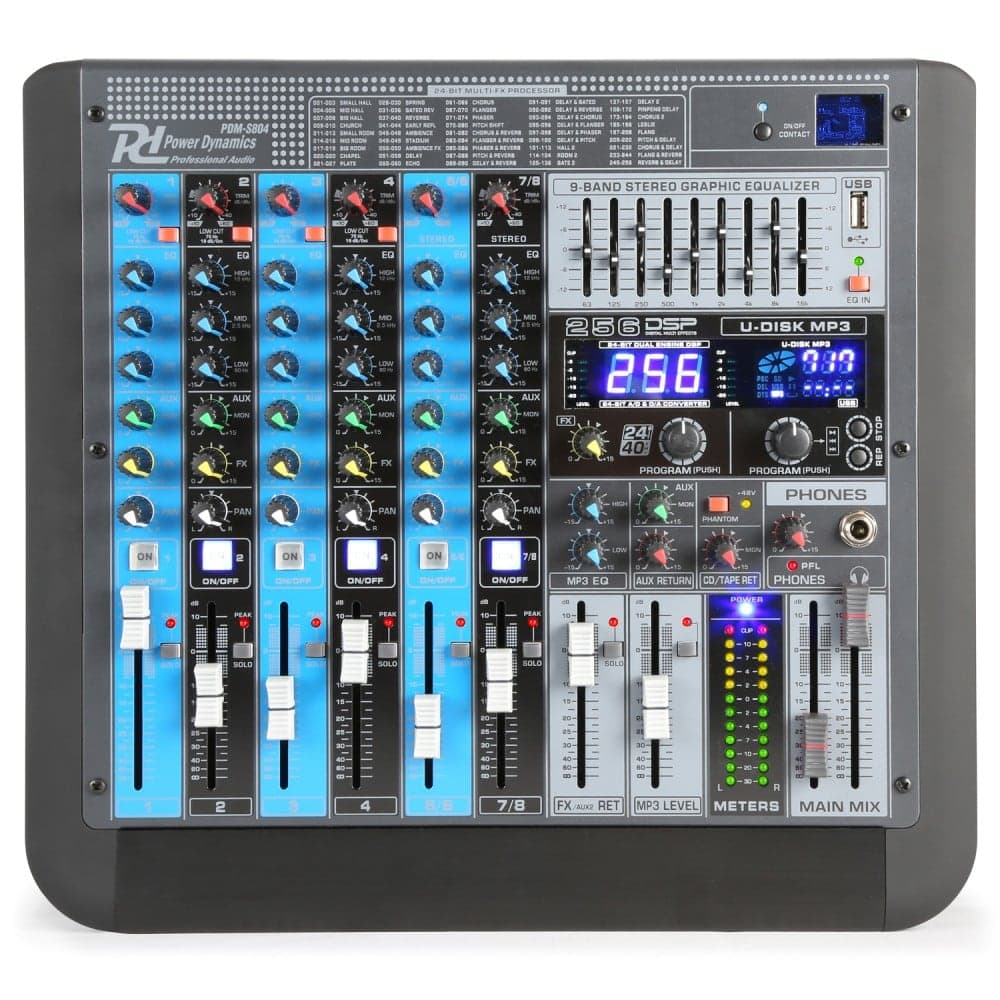

Power Dynamics PDM-S804

The Power Dynamics PDM-S804 is a professional 8-channel PA mixer loaded with features. Including a built-in USB MP3 player with Bluetooth receiver for streaming your favorite songs and backing tracks.  Everything you need to get a great mix for your production or event. The PDM-S804 has 4 selectable mic/line mono inputs, each with low noise transparent microphone preamps, and 2 stereo channels. Also included is a 24-bit digital multi-FX processor, and 9-band graphic EQ for adding extra depth and tone to your productions. A must have for any house of worship, school, small theatres, cafe bars, and more.

Features

• 4 Balanced microphone XLR inputs
• 4 Balanced mono line inputs 6.3mm Jack
• 2 Balanced stereo line inputs 6.3mm Jack
• +48V phantom power
• Stereo line input (RCA)
• 75Hz Low cut filter channel 1-4
• Multi-FX processor with 256 presets
• Solo switch per channel (PFL)
• On/off switch per channel
• Hi, Mid and Low control for each channel
• FX inserts on each channel
• Aux send per channel
• Adjustable Pan per channel
• 9-band Equalizer
• Stereo balanced main outputs (XLR + 6.3mm Jack)
• Separate control room, headphones and stereo rec outputs
• Built-in USB player with digital display
• BT-receiver for audio streaming
• LED VU meter and Peak LED’s

Spec

Frequency response: 10Hz -45kHz (±3dB)

THD: <0.01%

DSP Resolution: 24-bit

Type of effects: Hall, Room, Chapel, Plate, Spring, Gated rev, Reverse, Early refl, Ambience, Stadium, Delay, Echo, Gate, Chorus, Flanger, Phaser, Pitch, Reverb, Leslie, Flang, Ping pong delay

Presets: 256

Signal to noise ratio: >112dB

Output level: +/- 1V

Input:Line: +/- 150mV

Input:Mic: +/- 1.5mV

Power supply: 100-240VAC / 50-60Hz

Dimensions: 358 x 335 x 95mm

Weight: 4.3 kg
