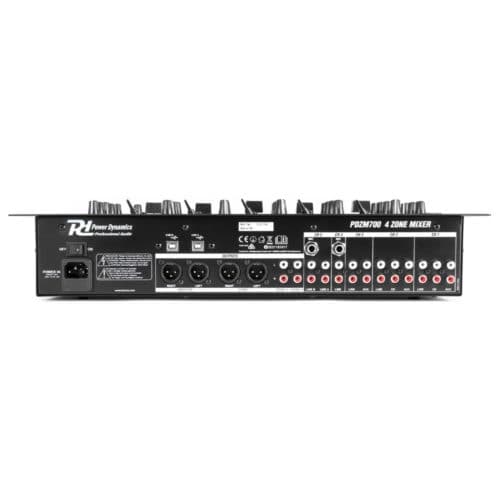

Power Dynamics PDZM700 6 Channel Installation Mixer USB 4 Zones



Power Dynamics PDZM700

The Power Dynamics PDZM700 is a 6-Channel USB DJ Mixer with 4 zones. Each channel boasts a 3-band equalizer to ensure a warm and enjoyable sound. While you can also mount any of the 6 channels freely to any of the 4 stereo zone outputs. Including 11 inputs for your RCA stereo sources, as well as 3 microphone (6.3mm Jack) sources. Additionally, the CUE mix functionality provides a switch between pre-fade listens on the channels while listening to the master volume in your headphones. Furthermore, you'll find a separate XLR microphone channel with equalizer ideal for presentations and karaoke performances. Overall, the PDZM700 is the perfect mixer for clubs, restaurants, and karaoke bars.

Features

• Inputs: 11 stereo line sources (RCA) and 3 microphone (6.3mm Jack)
• Outputs: Zone 1 and balanced master (XLR), zone 2 and zone 3 (RCA)
• Multiple zones assignable per channel
• Separate output volume for each zone
• 2 Built-in USB audio interfaces
• Pre-fade listen per channel
• 6.3mm Headphone output with CUE mix
• 3-band EQ on each channel
• 19″ Rack-mountable

Spec

Brand: Power Dynamics

Frequency Response: 15 – 30.000 Hz

THD: <0.05%

Input level: Mic. 1.5mV, 2kohm

Signal-to-noise ratio: >110dB

Equalizer: -30dB / +6dB

Power Supply: 220-240VAC 50Hz

Dimensions: (L x W x H) 178 x 482 x 100mm (19″ x 4 HE)

19 Inch: Yes

Weight: (kg) 3.8
