Power Dynamics Powerline A100B Set In-Wall Audio Amplifier with 4 Ceiling Speakers
Power Dynamics Powerline A100B Set In-Wall Audio System
The Power Dynamics Powerline A100B Set provides you with an In-Wall music system. This set features a built-in amplifier, a music player and 4x low profile ceiling speakers that offer superior HiFi audio. With a sleek elegant finish, the Powerline A100B Set features a touch-sensitive panel that provides a minimalist look. When installed all the cables and connections are securely hidden within the walls. This is a great benefit as all the cables are out of sight with no danger of becoming a tripping hazard. It is ideal for use in your living room, veranda, garage, showroom or restaurant.
Capable Music Player
Featuring a built-in Bluetooth (BT 5.0) receiver, the Powerline A100B Set offers the ability to stream your favourite music via Bluetooth. It supports the pairing of mobile phones and other external BT devices to achieve audio playback. You can also enjoy your favourite music from many other sources.
The USB port allows you to play your favourite MP3 tracks by connecting a USB with an MP3 playlist. The USB flash drive storage function supports maximum storage of 32GB. Considering the size of the MP3 audio data, the Powerline A100B Set provides you with more than enough data to enjoy hours of music throughout your day.
The inclusion of a MicroSD (TF/SD) card slot adds further opportunities for extending the playlist capabilities. The MicroSD memory card storage function also has maximum support of 32GB. When used together the Powerline A100B Set offers 64GB of either MP3, WAV, APE and other audio formats for listening playback. What’s more, is that you can use the AUX Input (3.5mm jack) for connecting external sound sources.
Touch-sensitive panel
The Powerline A100B Set offers a modern touchscreen that gives you the ability to control all aspects of the system. Its very simple to use and features dedicated touch functions for USB, BT and Auxiliary Line. Aside from the Standby ON/OFF function, you can skip songs, control volume, pause and play music. You will also appreciate the included sleek remote control that offers the possibility to use the Powerline A100B Set remotely.

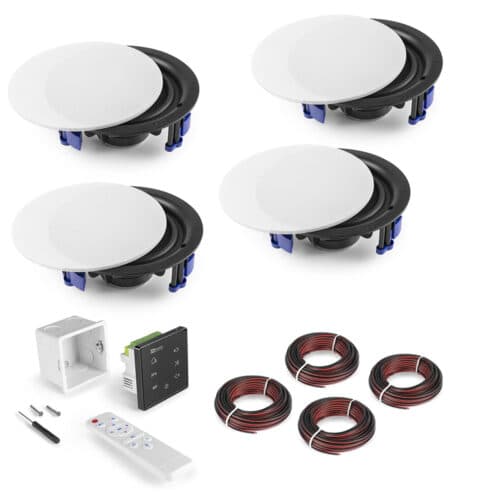

Powerline A100B Set Components
Everything you need to set up the Powerline A100B Set has been provided. This includes a 4x 20W Class-D digital amplifier with 4x 6.5″ Inch low profile ceiling speakers. Additionally, it also includes a touch-sensitive panel, remote control and 40x meters (4x 10m) of cables for installation. All of the high-quality 4-way speakers include a flush-fitting grille with magnetic closures. They also have a built-in high-end crossover filter.
The speakers offer an output power of 4x 20W and a frequency response between 20Hz -20kHz. The Class-D amplifier has an output power RMS of 80W. As a result, it will provide stereo amplification for the in-wall systems and 4x speakers. The touch-sensitive panel has a sleek modern face featuring a glossy black finish. It will display your settings via a Blue backlight resulting in a sleek modern contrast. The ceiling speakers have a white flush-fitting grille which is perfect for discrete ceilings installations. So your sound can be heard but not seen.
The Powerline Series also offers the Powerline A50B Set In-Wall Audio Amplifier with 2 Ceiling Speakers.
Features
- Stereo amplifier in-wall system for 4 speakers
- 4x 20W Class-D digital amplifier
- 4x 6.5″ low profile ceiling speaker with superior HiFi sound
- Touch-sensitive panel
- BT 5.0 connectivity for wireless streaming audio
- MP3 player
- USB and microSD card slot
- Screw terminations on the rear of the unit
- Line in and output
- Colour: Glossy black finish / Speakers white
- Including back box, 40m cable and a remote control
Spec
Wall amplifier
Rated voltage: 100-240VAC, 60-50Hz
Output power RMS: 80Watt
Impedance: 4-8 Ohm
Frequency response: 20Hz – 20kHz
Signal to noise ratio: >98dB
Dimensions per unit: 86 x 86 x 10,5mm
Weight (per unit): 0,3 kg
Speaker cable: 4x 0.75mm2
Ceiling Speaker
Output power RMS: 30Watt
Impedance: 8Ohm
Frequency response: 50Hz – 20kHz
Speaker diameter: 6.5inch
Tweeter diameter: 0.5inch
Dimension: Ø 215mm
Install dimension: Ø 190mm
Depth: 80mm
