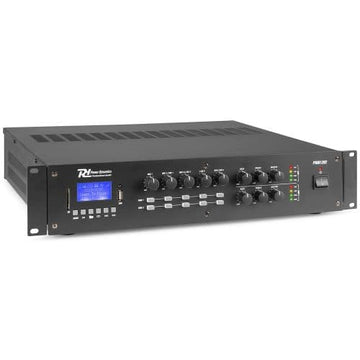

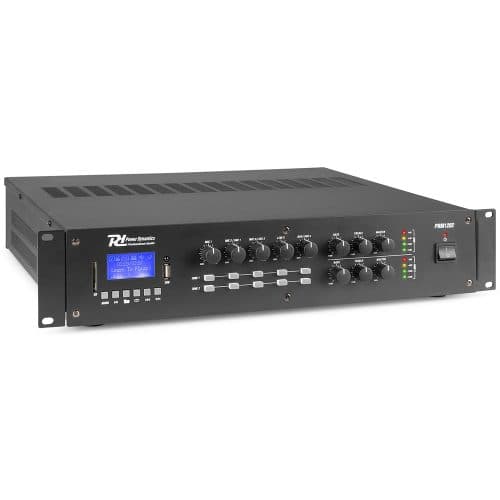

Power Dynamics PRM1202 100V 2-Zone Matrix Amplifier
The PRM1202 is specially designed for applications such as paging, announcements, intercommunications, background music and more. It features 2 x 120W Class-D power sections, BT wireless technology for audio streaming and an MP3 Player with USB/SD slot + more.
Power Dynamics PRM1202 100V 2-Zone Matrix Amplifier
The Power Dynamics PRM1202 is a rack-mountable amplifier with 2 separate 120W outputs. It can either be used as a 100V amplifier or a standard low-impedance amplifier. This 2-zone amplifier is designed for multi-room systems requiring different audio sources.
Functional Features
PRM1202 is equipped with a Bluetooth receiver and USB/SD ports for MP3 playback. Also included is a bright LCD display with ID3 Tag.
Inputs
The PRM1202 is provided with switchable XLR inputs with 24V Phantom Power. It is specially designed for applications such as paging, announcements, intercommunications, background music and more.
PRM1202 Key Highlights:
- 2-Zone amplifier with 2 independent output zones
- 2x 120W Class-D power Section
- MP3 Player with USB/SD slot
Features
- 2-Zone amplifier with 2 independent output zones
- 2x 120W Class-D power Section
- MP3 Player with USB/SD slot
- Using BT wireless technology for audio streaming
- LCD control panel with ID3 tag
- 2x Mic/line inputs 6.3mm and 2x RCA line input and 1x RCA line output
- XLR Microphone input with switchable phantom power (24V) and VOX priority
- 100V or 4/8 Ohm speaker output
- Zone outputs: 2x Speaker Terminal (100V / 4Ohm / 8Ohm / Com)
- Bass and treble controls
- 19″ Rack mountable (2U)
- Emergency operation by 24V battery (not supplied)
- Overload protected
- Including remote control
Spec
Playback options: BT streaming, SD, USB
Output power: RMS 240W
Impedance: 100V, 4 Ohm, 8 Ohm
Frequency response: 100Hz – 24.000Hz
Power supply: 220-240VAC 50Hz
Dimensions (L x W x H): 390 x 385 x 95mm (without feet 88mm)
Weight: 14 kg
Accessories: Power cable, Remote control
