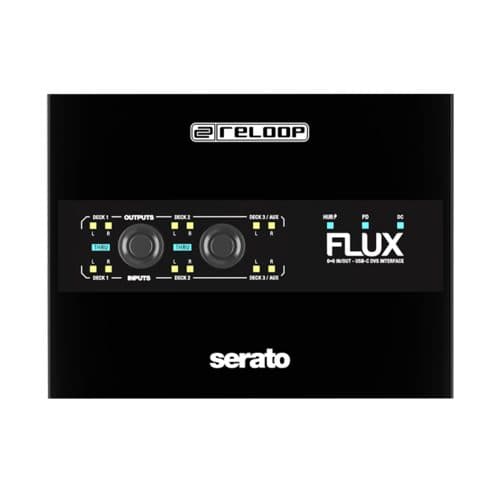

Reloop FLUX 6×6 In/Out USB-C DVS Interface for Serato DJ Pro

The Reloop Flux is a next-generation USB-C interface for using Serato DJ Pro with turntables, CDJs or other media players. The interface boasts a club-ready design and will transform any conventional mixer into a professional digital vinyl system.

Features

• 3-channel (6×6 in/out) USB-C DVS interface for Serato DJ Pro
• Convert any mixer into a professional digital vinyl system
• Unlocks full version of Serato DJ Pro and Serato DVS
• Studio-grade 24-bit / 96kHz sound card with crystal-clear audio and ultra-low latency response
• 3x inputs for turntables, CD players or AUX-In for live feed signal, switchable in any combination via dedicated dip switches
• Dedicated GND terminal for grounding turntables
• Gold-plated, corrosion-resistant audio connections
• 3x line outputs, including AUX-Out, assignable to the Sampler
• Easy, accessible direct thru buttons for analogue deck playback
• All terminals are visible from the top of the unit for easy installation in dark surroundings
• Bus-powered with optional USB-C DC in port for external power supplycable connection for power and audio
• 2-port USB hub with power delivery support for connecting further accessories
• Signal-flow LEDs for all inputs and outputs (L/R) and thru indication for clear visibility
• Rugged, heavy-duty metal housing with a scratch-resistant black finish for durability on the road and reliability in the club

Spec

Power:
USB bus powered: Yes
Recommended power: 2 A or higher / minimum power: 400 mA
Maximum USB-PD throughput: 60 W
Maximum USB Hub power output: 2 x 0.8 A = 8 W
Supported external USB (type A or C) power supply: 5 V/1 A – 20 V/3 A
Power supply priority: FLUX self-power -> USB Hub -> PD (to PC)

Audio:
S/N Ratio (output reference level 1 kHz, +4 dB):
Deck In (LINE signal input: 0 dBV): More than 83 dB
Deck In (PHONO signal input: -32 dBV): More than 73 dB
THD + N:
–LINE signal input: -4 dBV @1K / Less than 0.03% (1 kHz,+0 dB)
–PHONO signal input: -36 dBV @1K / Less than 0.05% (1 kHz,+0 dB, Inverse RIAA)
Maximum Gain:
– Deck In (LINE): +4 dB ± 2 dB
– Deck In (PHONO): +36 dB ± 2 dB
Maximum Input (1 kHz, THD=1%):
– Deck In (LINE): More than +7 dBV
– Deck In (PHONO): More than -25 dBV
Maximum Output (1 kHz, THD=1%):
– Deck Output: More than +11 dBV
USB:
– USB audio interface with 24 bit/44.1 kHz, 48 kHz, 96 kHz
– USB 2.0 high-speed (480 Mbit/s)
– Class-compliant on macOS
– USB Power Delivery Protocol 3.0
General:
Dimensions (WxDxH): 160 x 120 x 34 mm
Weight: 0.85 kg
Accessories:
– User Manual
– 1x USB type C/C cable
– 1x USB type C/A cable
– 2x RCA cables
