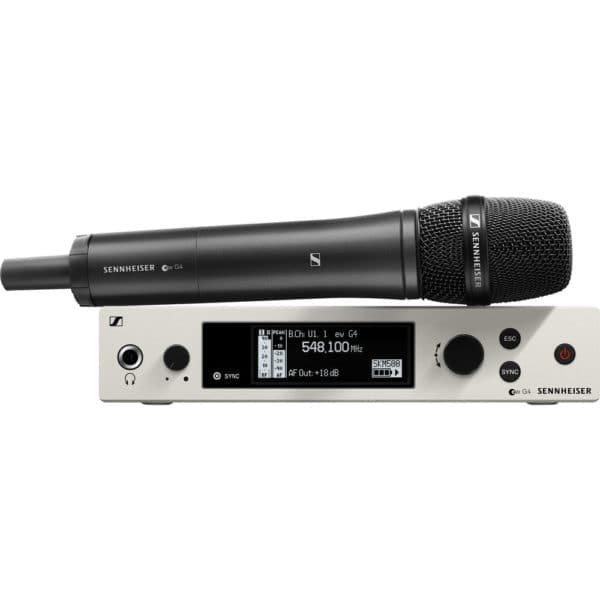

Sennheiser EW 500 G4-KK205 Wireless Vocal Set – A Band
Sennheiser EW 500 G4-KK205
The Sennheiser EW 500 G4-KK205 handheld microphone is the best of two renown brands, Sennheiser and Neumann. Delivering the reliability of wireless transmission together with the excellence of studio sound. The Neumann super-cardioid condenser capsule KK 205 offers true Neumann sound, combined with Sennheiser G4 wireless transmission to provide you with the freedom of wireless operation and all the virtues of a rugged stage microphone: excellent pop protection and high feedback resistance. The EW 500 G4 system is highly flexible, up to 88 MHz bandwidth, delivering 20 frequency banks, each with up to 32 factory-preset channels. An ethernet connection for Wireless Systems Manager (WSM) control software, for advanced frequency coordination in multi-channel setups. There is no question why the EW500 G4 series is preferred and trusted by so many audio professionals, and now with Neumann sound quality will set a new standard for live vocal systems.
Features

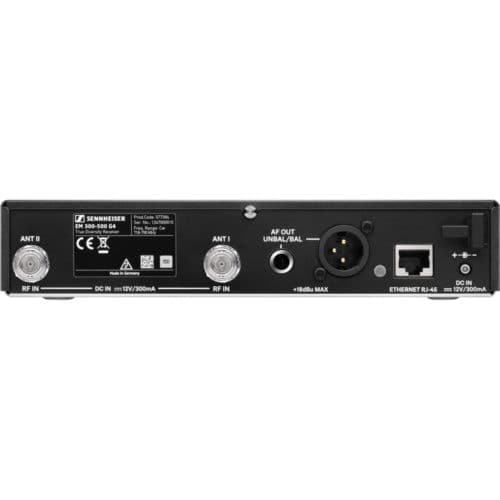

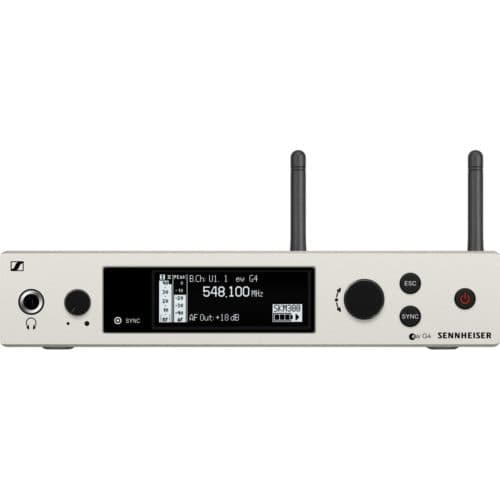

- True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

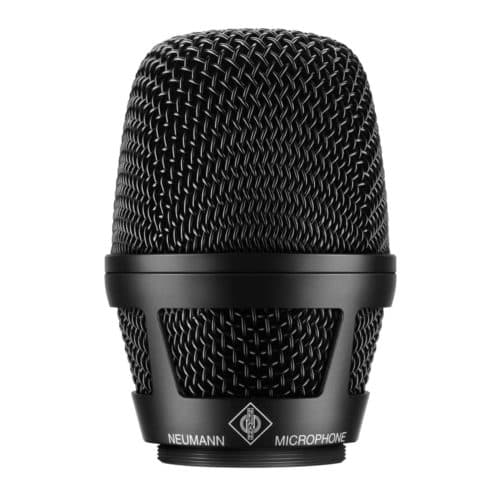

- Neumann KK 205 bk Supercardioid condenser capsule head for Sennheiser wireless systems
Spec

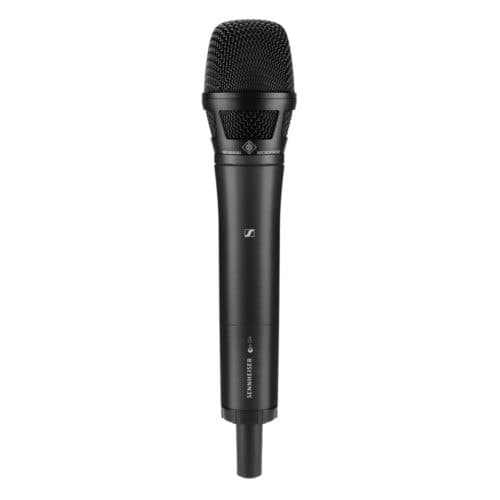

Microphone Type: Handheld, KK 205 Neumann (Supercardioid)
Operating Frequency: AS (520 – 558 MHz)
Presets: 20 frequency banks, each with up to 32 factory-preset channels
AF Frequency response: 80Hz – 18kHz
Sound Pressure Level: 150dB SPL (MAX)
THD: < 0.9 %
Signal-to-noise ratio: > 115 dB(A)
Switching bandwidth: up to 88 MHz
Power Requirements:
- Receiver: Power Supply 12V DC (included)
- Handheld: 2x AA batteries
Operating time (batteries): 8hr (typical)
Dimensions:
- Receiver: 212 x 202 x 43 mm
- Transmitter: Ø 50 x 265 mm
Weight:
- Receiver: 980 g
- Transmitter: 450g (inc batteries)
