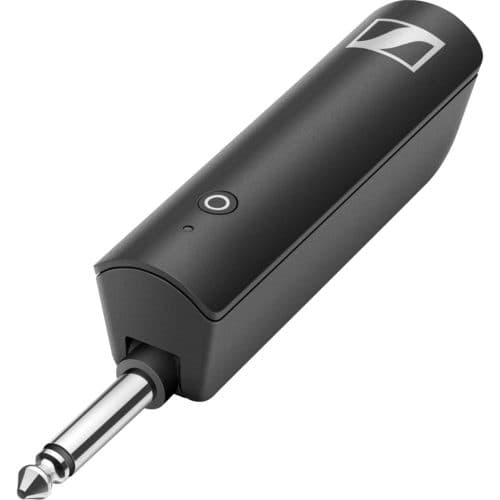

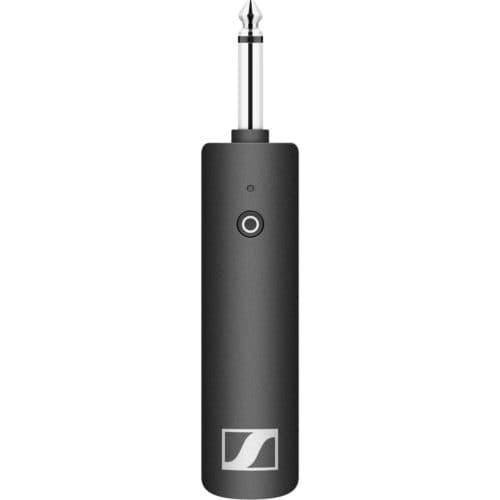

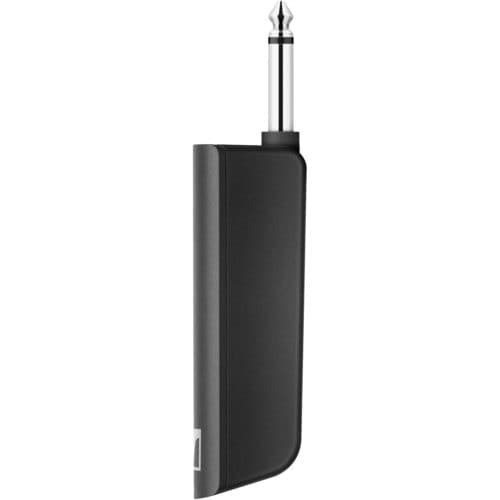

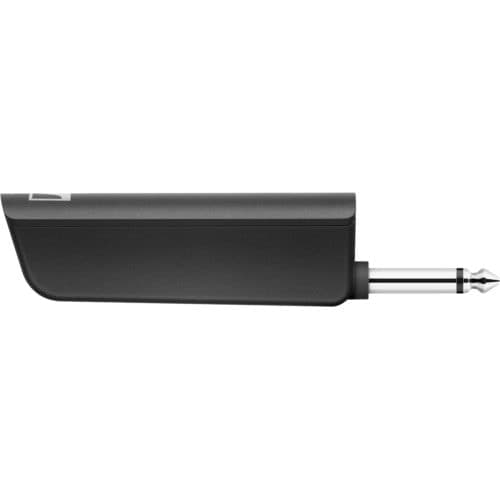

Sennheiser XSW-D Instrument TX Wireless Digital System

Sennheiser XSW-D Instrument TX

The Sennheiser XSW-D Instrument TX  is a wireless receiver for the XSW-D series transmitters. Fitted with a 1/4" TS jack plug for connecting directly to your electric, acoustic, or bass guitar. Perfect for any musician wanting a reliable wireless solution on stage. Compatible with all Sennheiser XSW-D RX systems. Note: This is just the transmitter component, to operate the unit you will need a compatible receiver (sold separately)

Features

• For Electric, Acoustic, Bass Guitars
• 1/4″ Plug-On Instrument Transmitter
• Easy to Use, Plug & Play Operation
• Low Latency for Tighter Performance
• Lightweight Miniature Housing
• Protected Peer-to-Peer Connection
• USB-Rechargeable 5-Hour Batteries
• 5 Systems at Once Max, Up to 250′ Range

Spec

System

• Frequency Range 2.400 to 2.483 GHz
• Latency <4 ms with aptX Live Codec
• Transmission Range 250′ / 76.2 m (Line of Sight)
• Simultaneous Operation of Units Up to 5 Systems Simultaneously
• Frequency Response 10 Hz to 18 kHz
• Signal-to-Noise Ratio ≥106 dB
• THD <0.1 % Modulation GFSK with TDMA
• Operating Temperature -10 to 55° C / 14 to 131° F
• Relative Humidity 95% (Non-Condensing)

Transmitter

• Type 1/4″ Plug-On Transmitter
• Input Connector 1/4″ / 6.3 mm TS, Male, Foldable (90°)
• RF Output Power 10 mW
• Input Sensitivity Instrument-Level Input Only
• Battery Type: Built-In, USB-Rechargeable, Lithium-Ion
• Battery Life: 5 Hours
• Charging Time: 3 Hours (Typical)
• Charging Cycles: Up to 1000 Cycles
• Nominal Voltage: 3.7 V
• Cell Capacity: 850 mAh
• Input Voltage: 5.0 V (Typical)
• Charging Temperature: 32 to 140° F / 0 to 60° C
• Dimensions: 122 x 24 x 28 mm
