Sennheiser XSW-D Mini Jack RX Wireless Digital System

Sennheiser XSW-D Mini Jack RX

The Sennheiser XSW-D Mini Jack RX gives you a wireless receiver for your XSW-D series transmitter. Sporting a 1/8″ TRS jack input, the XSW-D Mini Jack RX is perfect for connecting your camera or portable recorder. What’s more, it’s extremely small and compact, while easy to operate with simple one-button control.

Above all, the XSW-D Mini Jack RX is perfect for videography, interviews, podcasts, and anyone wanting a reliable wireless solution. It’s also compatible with all Sennheiser XSW-D TX systems.

Note: XSW-D Mini Jack RX is the receiver component only. You will also need a compatible transmitter to operate the unit (sold separately).

Features

• 3.5mm Locking Output Connector
• For Use with XSW-D Wireless Mic System
• For Video, Podcast, Mobile Journalism
• Easy to Use, Plug & Play Operation

Spec

System

• Wireless Transmission Digital: 2.4 GHz
• Included Transmitters: 1 x Bodypack
• Diversity: TDMA
• RF Frequency Band: 2400 to 2483.5 MHz
• Max Operating Range: 76.2 m (Line of Sight)
• Max Systems per Setup: 5
• Audio Codec: APT-X Live
• Latency: <4 ms
• Encryption: None
• Modulation: GFSK

Receiver

• Form Factor: Camera-Mount
• Mounting Options: Shoe-Mount (with Included Hardware)
• Antenna: Internal
• Number of Audio Channels: 1
• Audio I/O: 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Output (Lockable)
• Audio Output Level: 12 dBu (Consumer Level)
• Frequency Response: 80 Hz to 18 kHz

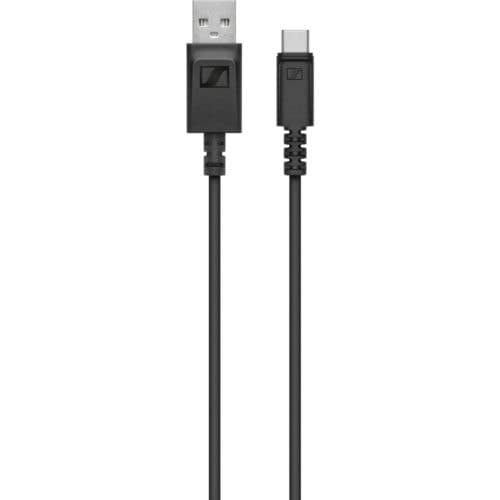

• USB: Port 1 x USB Type-C (Bus Power, Charging)
• Power Requirements: Battery, USB Bus Power
• Battery Type: 1 x Built-In Rechargeable (Included, Not Replaceable)
• Approx. Battery Life: 5 Hours (Lithium Rechargeable)
• Battery Cycle Count: Up to 1000 Cycles
• Display & Indicators: 1 x LED (Battery Status, Mute, RF Level)
• Housing: Plastic
• Operating Temperature: 14 to 131°F / -10 to 55°C
• Operating Humidity: 95%
• Dimensions: 28.0 x 86.0 x 24.0 mm
