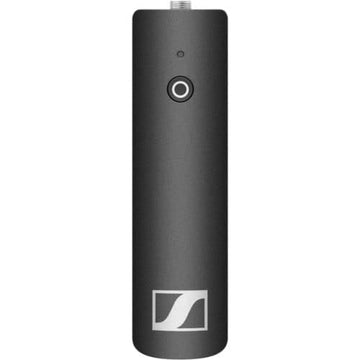

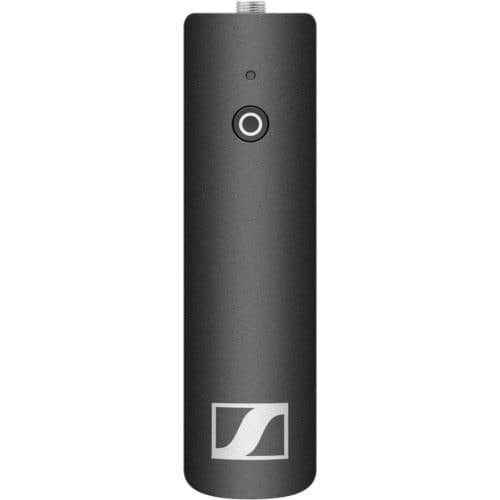

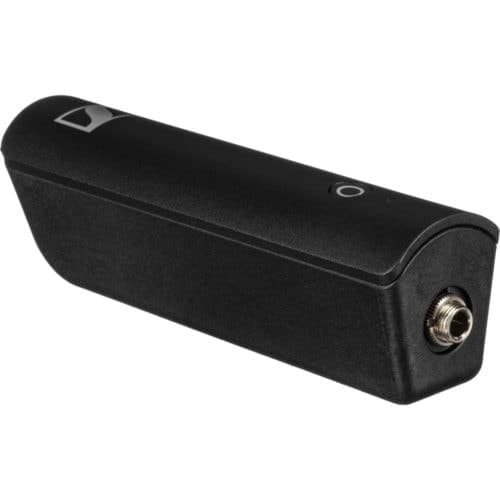

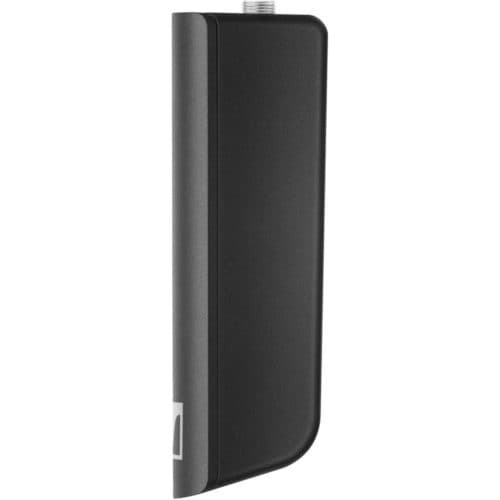

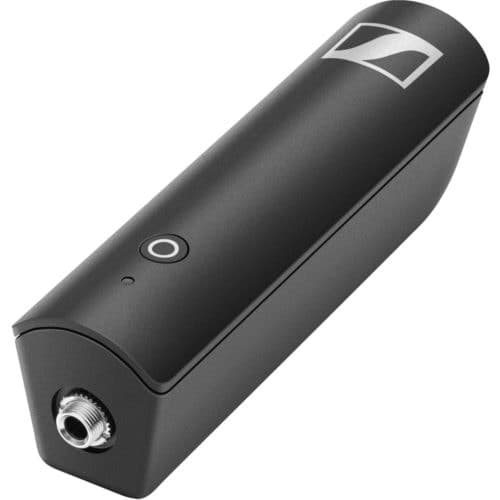

Sennheiser XSW-D Mini Jack TX Wireless Digital System

Sennheiser XSW-D Mini Jack TX

The Sennheiser XSW-D Mini Jack RX  is a wireless transmitter for the XSW-D series transmitters. Fitted with a 1/8" TRS jack socket for connecting to your lavalier, or audio device. Ultra small and easy to operate with simple one-button control. Perfect for videography, interviews, podcasts and anyone wanting a reliable wireless solution. Compatible with all Sennheiser XSW-D RX systems. Note: This is just the transmitter component, to operate the unit you will need a compatible transmitter (Sold separately)

Features

• 3.5mm Locking Output Connector
• For Use with XSW-D Wireless Mic System
• For Video, Podcast, Mobile Journalism
• Easy to Use, Plug & Play Operation

Spec

• System
  • Wireless Transmission Digital: 2.4 GHz
  • Included Transmitters: 1 x Bodypack
  • Diversity: TDMA
  • RF Frequency Band: 2400 to 2483.5 MHz
  • Max Operating Range: 76.2 m (Line of Sight)
  • Max Systems per Setup: 5
  • Audio Codec: APT-X Live
  • Latency: <4 ms
  • Encryption: None
  • Modulation: GFSK

  Receiver

  • Form Factor: Camera-Mount
  • Mounting Options: Shoe-Mount (with Included Hardware)
  • Antenna: Internal
  • Number of Audio Channels: 1
  • Audio I/O: 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Output (Lockable)
  • Audio Output Level: 12 dBu (Consumer Level)
  • Frequency Response: 80 Hz to 18 kHz

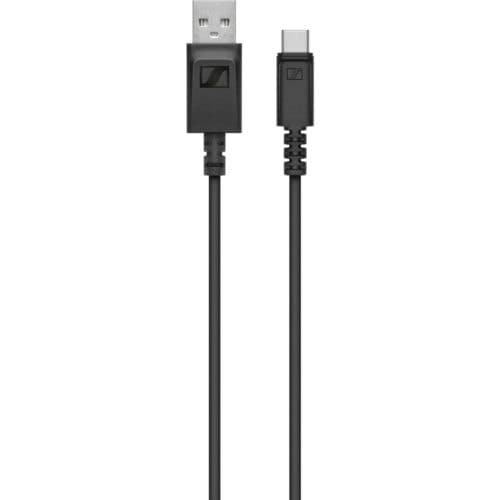

  • USB: Port 1 x USB Type-C (Bus Power, Charging)
  • Power Requirements: Battery, USB Bus Power
  • Battery Type: 1 x Built-In Rechargeable (Included, Not Replaceable)
  • Approx. Battery Life: 5 Hours (Lithium Rechargeable)
  • Battery Cycle Count: Up to 1000 Cycles
  • Display & Indicators: 1 x LED (Battery Status, Mute, RF Level)
  • Housing: Plastic
  • Operating Temperature: 14 to 131°F / -10 to 55°C
  • Operating Humidity: 95%
  • Dimensions: 28.0 x 86.0 x 24.0 mm
