Sennheiser XSW-D Pedalboard Set Wireless Digital

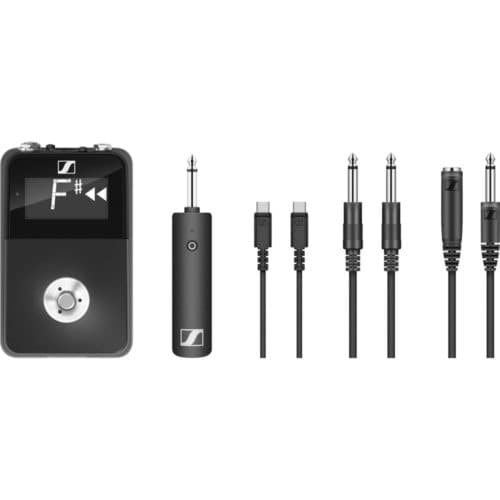

Sennheiser XSW-D Pedalboard Set

The Sennheiser XSW-D Pedalboard set makes going wireless easier than ever. One-touch functionality ensures ease of use, while 2.4GHz digital transmission provides worldwide, license-free compatibility. The system's transmitter is robust enough for everyday use, delivering a 250-foot operating range, and up to 5 hours of battery life. The pedalboard-friendly receiver includes and indispensable tuner function. It also supplies you with a handy mute function. The Sennheiser XSW Pedalboard set boasts an elegant design, that doesn't detract from its functionality. It makes wireless performances effortless, while providing the level of quality and reliability that the Sennheiser Pro Audio Range is known for.

Features

• One touch ease-of-use
• 2.4 GHz digital transmission for worldwide operation
• 75m range (250ft) in optimal conditions
• Up to 5 hours battery life on a single charge
• Switch between multiple transmitters linked to one receiver
• Configure any combination of transmitters and receivers
• Mute from either transmitter or receiver

Spec

System

• Frequency Range: 2.400 to 2.483 GHz
• Latency: <4 ms with aptX Live Codec
• Transmission Range: 250′ / 76.2 m (Line of Sight)
• Simultaneous Operation of Units: Up to 5 Systems Simultaneously
• Frequency Response: 10 Hz to 18 kHz
• Signal-to-Noise Ratio: ≥106 dB
• THD: <0.1 %
• Modulation: GFSK with TDMA
• Operating Temperature: -10 to 55° C / 14 to 131° F
• Relative Humidity: 95% (Non-Condensing)

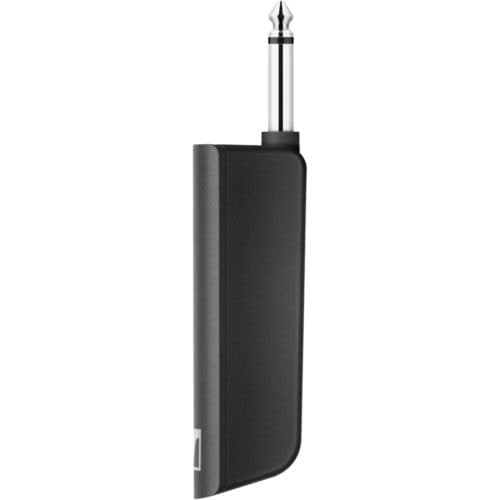

Transmitter 1

• Type: Plug-On Transmitter
• Input Connector: 1/4″ Jack
• RF Output Power: 10 mW
• Input Level: Instrument-Level Input Only

Battery

• Type: Built-In, USB-Rechargeable, Lithium-Ion
• Battery Life: 5 Hours
• Charging Time: 3 Hours (Typical)
• Charging Cycles: Up to 1000 Cycles
• Charging Temperature: 32 to 140° F / 0 to 60° C
• Dimension: 122 x 24 x 28 mm
• Weight: Not Specified by Manufacturer

Receiver

• Type: Pedalboard Receiver
• Output Connector: 1/4″ Jack / DI: XLR-Male
• Audio Output Level: Consumer Line-Level Output Only: -12 dBu (Maximum)
• Dimensions: 130 x 82 x 51 mm
