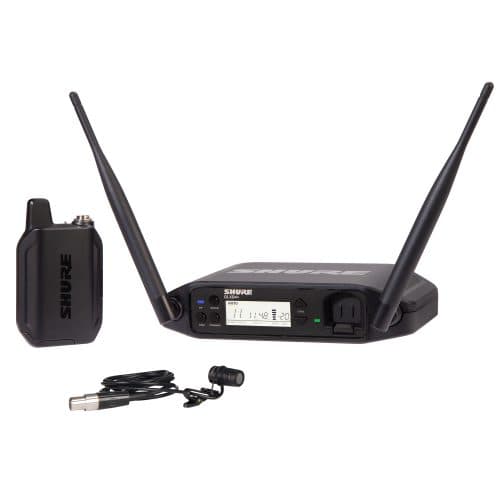

Shure GLXD14+85 Dual-Band Cardioid Wireless Presenter System
The new Shure GLXD14+85 Dual Band Wireless Presenter System features the premium wearable WL185 lavalier microphone for spoken word applications and the GLXD4+ tabletop receiver.
Ready-To-Go. Every time. Automatically.
The perfect combination of automatic frequency management with the new Dual Band Technology provides reliable and consistent performance. Also, the Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.
The WL185 Mic
Cardioid TQG lavalier microphone offers an interchangeable cartridge and consists of a tie clip, and foam windscreen. Features include wide dynamic range and frequency response for accurate sound reproduction and increased immunity to noise.
Speech Application Ready
The WL185 cardioid miniature lavalier condenser microphone is designed for use in speech applications such as broadcast presenting, speeches, lectures and for use in houses of worship.
GLXD14+85 Extras In the Box:
- 1 PS43 Power Supply
- 1 SB904 Lithium-Ion Rechargeable Battery
- 1 Black Carrying Case
Features
- For Presenters and Broadcasters
- WL185 Cardioid Lavalier Microphone
- Lightweight Bodypack Transmitter
- Portable Tabletop Receiver
- Auto Scans 2.4 and 5.8 GHz Frequencies
- Easy Setup with Auto Pairing
- 208.5 MHz Total Bandwidth
- Fixed Front-Panel Antennas
- Front Panel Charges 12-Hr SB904 Battery
- Expandable to 4 Mic Channels/100′ Range
Spec
System
Wireless Technology: Digital 2.4 GHz/5.8 GHz
Included Transmitters: 1 x Bodypack
Diversity: True Digital Diversity
RF Frequency Band: Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF Bandwidth: 208.5 MHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 100′ / 30.5 m (Line of Sight)
Max Transmitters per Band: 8
Latency: 4.5 to 8 ms
Dynamic Range: 120 dBA
Modulation: Proprietary

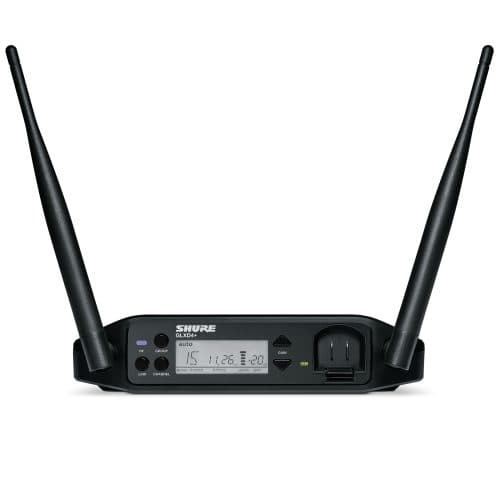

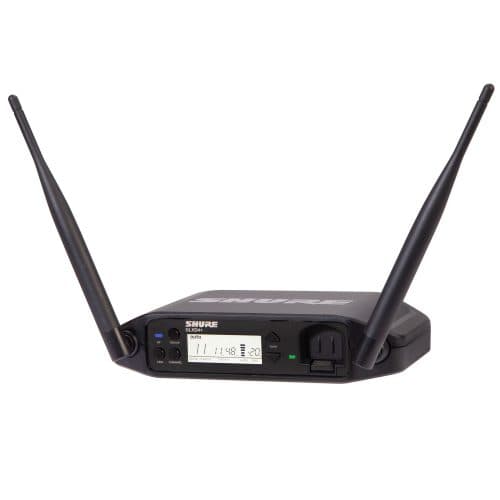

Receiver
Receiver Type: Tabletop
Antenna: 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels: 1
Audio I/O: 1 x XLR 3-Pin Male Balanced Mic/Line Output, 1 x 1/4″ TRS Female Balanced Output
Audio Output Level: XLR Output: +1 dBV 1/4″ Output: +8.5 dBV
Phantom Power Protection: On 1/4″, XLR Outputs
Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity: 1 x USB-C Female (Firmware Update)
Impedance XLR Output: 100 Ohms (Balanced) 1/4″ Output: 100 Ohms (Balanced) 50 Ohms (Unbalanced)
RF Output Power: 10 mW (EIRP, Max)
Spurious: Rejection: >35 dB
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 14.5 to 17 VDC at 600 mA (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Display & Indicators: 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing: ABS
Operating Temperature: 32 to 113°F / 0 to 45°C
Dimensions: 183 x 40 x 122 mm
Weight: 310 g
Microphone
Microphone Type: Lavalier
Colour: Black
Sound Field: Mono
Capsule Electret: Condenser
Polar Pattern: Cardioid
Frequency Range: 50 Hz to 17 kHz
Equivalent Noise Level: 28 dB A-Weighted
Maximum SPL: 130.5 dB SPL
Impedance: 1.8 Kilohms
Sensitivity: -45.5 dBV/Pa
Dynamic Range: 102.5 dB
Outputs: 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
Cable Length: 1.2 m
Operating Voltage: 1.5 to 10 V

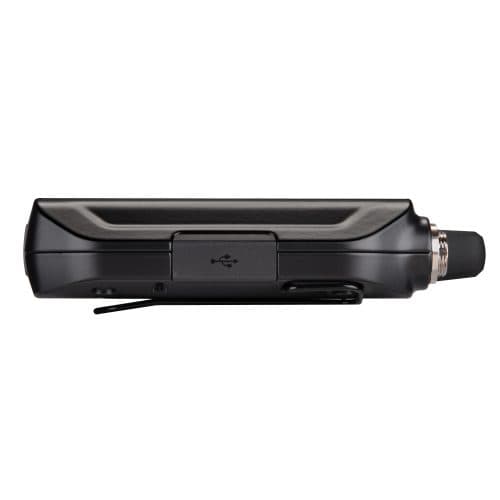

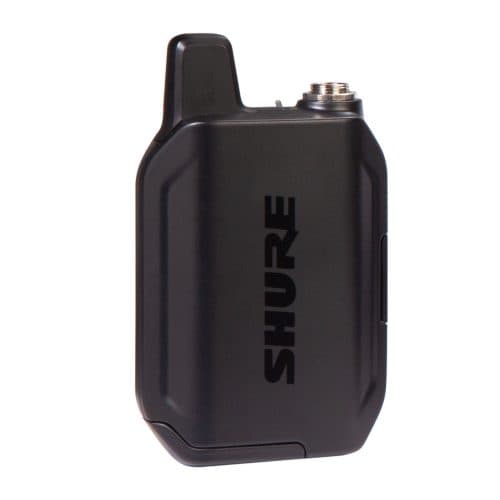

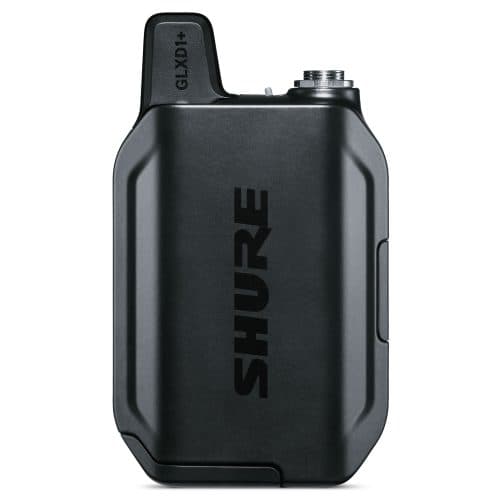

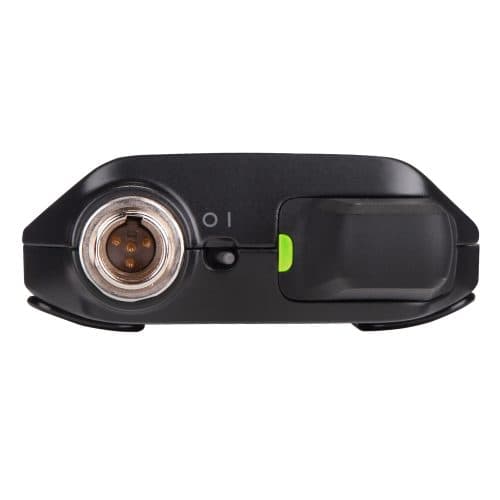

Transmitter
Transmitter Type: Bodypack
RF Output Power: 10 mW (EIRP)
Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Plug-In Power: 5 V
Muting: Off/On Switch
Audio Input Level: -8.4 dBV / 7.5 V p-p
Gain Range: -18 to +42 dB
Sync Method: Proprietary
Antenna: 1 x Internal, Fixed (Beltpack)
Power Requirements: Battery
Battery Type: 1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity: 2420 mAh
Battery Charging Time: .25 to 3 Hours
Approx. Battery Life: 12 Hours (Lithium Rechargeable)
USB/Lightning I/O: 1 x USB-C (Charging)
Display & Indicators: 1 x LED (Battery Status, Sync)
Housing: Metal
Dimensions: 67 x 115 x 28.5 mm
Weight: 153.1 g (without Batteries)
