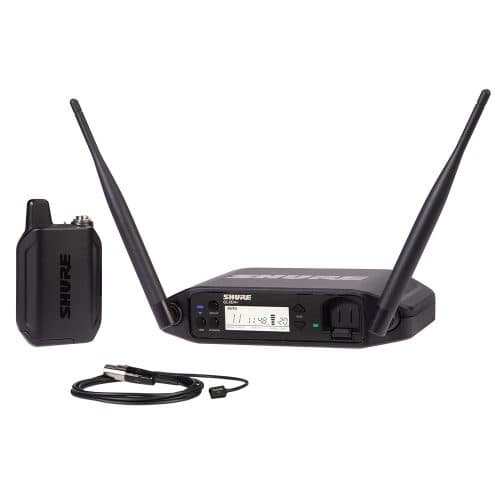

Shure GLXD14+93 Dual-Band Wireless Presenter Vocal System
Shure GLXD14+93 Dual-Band Wireless Presenter Vocal System
The new Shure GLXD14+93 Dual Band Wireless Presenter System features the miniature wearable WL93 lavalier microphone for spoken word applications and the GLXD4+ tabletop receiver.
Ready-To-Go. Every time. Automatically.
The perfect combination of automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use.
WL93 Omnidirectional Miniature Lavalier
The WL93 omnidirectional miniature Lavalier condenser microphone is designed for use in speech applications. Therefore, it’s perfect for broadcast presenting, speeches, lectures and for use in houses of worship.
What are the characteristics of the WL93?
Despite its small size, the microphone element provides full, clear sound comparable to that of much larger microphones. Its frequency response is tailored to body-worn applications, with low-end roll off and presence rise.
GLXD14+93 Extras In the Box:
- 1 PS43 Power Supply
- 1 SB904 Lithium-Ion Rechargeable Battery
- 1 Black Carrying Case
Features
- For Presenters and Performers
- WL93 Omnidirectional Lavalier Microphone
- Lightweight Bodypack Transmitter
- Portable Tabletop Receiver
- Auto Scans 2.4 and 5.8 GHz Frequencies
- Easy Setup with Auto Pairing
- 208.5 MHz Total Bandwidth
- Fixed Front-Panel Antennas
- Front Panel Charges 12-Hr SB904 Battery
- Expandable to 4 Mic Channels/100′ Range
Spec

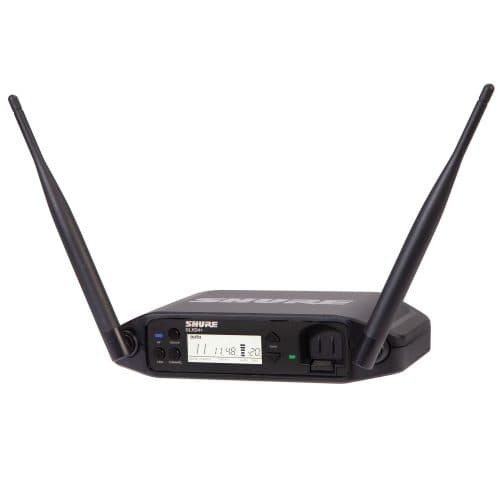

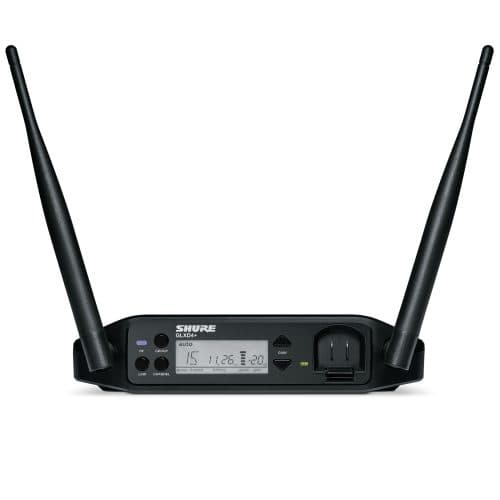

Receiver
Receiver Type: Tabletop
Antenna: 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels: 1
Audio I/O: 1 x XLR 3-Pin Male Balanced Mic/Line Output, 1 x 1/4″ TRS Female Balanced Output
Audio Output Level: XLR Output: +1 dBV 1/4″ Output: +8.5 dBV
Phantom Power Protection: On 1/4″, XLR Outputs
Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity: 1 x USB-C Female (Firmware Update)
Impedance XLR Output: 100 Ohms (Balanced) 1/4″ Output: 100 Ohms (Balanced) 50 Ohms (Unbalanced)
RF Output Power: 10 mW (EIRP, Max)
Spurious: Rejection: >35 dB
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 14.5 to 17 VDC at 600 mA (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Display & Indicators: 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing: ABS
Operating Temperature: 32 to 113°F / 0 to 45°C
Dimensions: 183 x 40 x 122 mm
Weight: 310 g

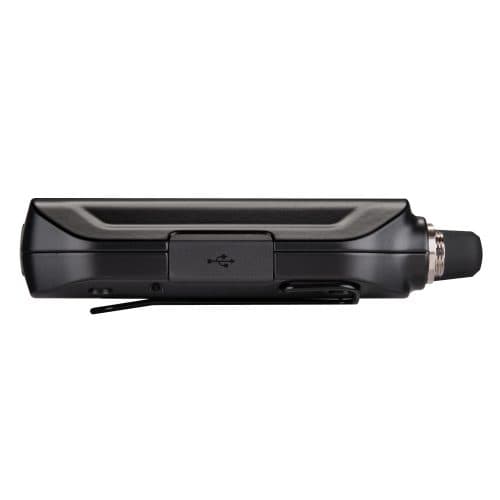

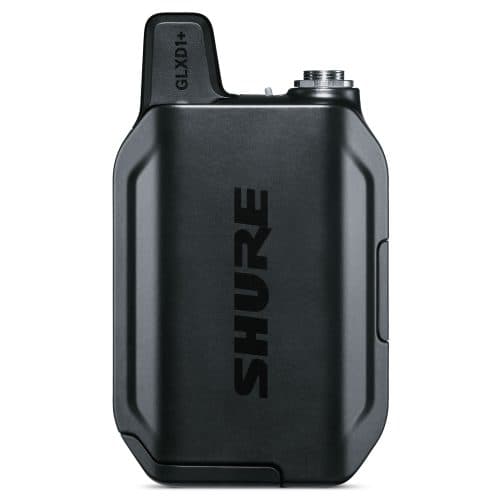

Transmitter
Transmitter Type: Bodypack
RF Output Power: 10 mW (EIRP)
Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Plug-In Power: 5 V
Muting: Off/On Switch
Audio Input Level: -8.4 dBV / 7.5 V p-p
Gain Range: -18 to +42 dB
Sync Method: Proprietary
Antenna: 1 x Internal, Fixed (Beltpack)
Power Requirements: Battery
Battery Type: 1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity: 2420 mAh
Battery Charging Time: .25 to 3 Hours
Approx. Battery Life: 12 Hours (Lithium Rechargeable)
USB/Lightning I/O: 1 x USB-C (Charging)
Display & Indicators: 1 x LED (Battery Status, Sync)
Housing: Metal
Dimensions: 67 x 115 x 28.5 mm
Weight: 153.1 g (without Batteries)
Microphone
Microphone Type: Lavalier
Colour: Black
Sound Field: Mono
Capsule: Electret Condenser
Polar Pattern: Omnidirectional
Frequency Range: 50 Hz to 20 kHz
SNR: 76 dB
Equivalent Noise Level: 18 dB A-Weighted
Maximum SPL: 120 dB SPL
THD: < 1%
Impedance: 3 Kilohms
Dynamic Range: 102 dB
Output: 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
Cable Length: 3.94′ / 1.2 m
Operating Voltage: 2 to 10 V
Operating Current Consumption: 40 µA
Operating Temperature: 0 to 134°F / -18 to 57°C
Storage Temperature: -4 to 329°F / -20 to 165°C
Weight: 0.6 oz / 16 g
