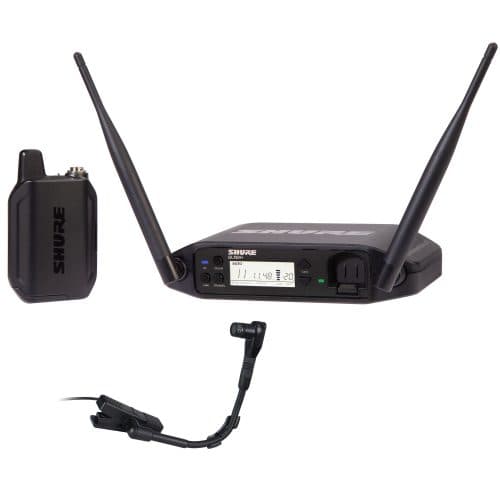

Shure GLXD14+B98 Dual-Band Wireless Instrument System

The new Shure GLXD14+B98 Dual Band Wireless Rack System features the precision-crafted BETA 98H/C flexible gooseneck microphone for brass, woodwind and percussion applications and the GLXD4+ half-rack receiver.

Go Wireless Without Complication.

With the new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth. It intelligently avoids interference for reliable, dropout-free audio. The GLXD14+B98H/C features smart rechargeability with up to 12 hours of runtime. Also, the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.

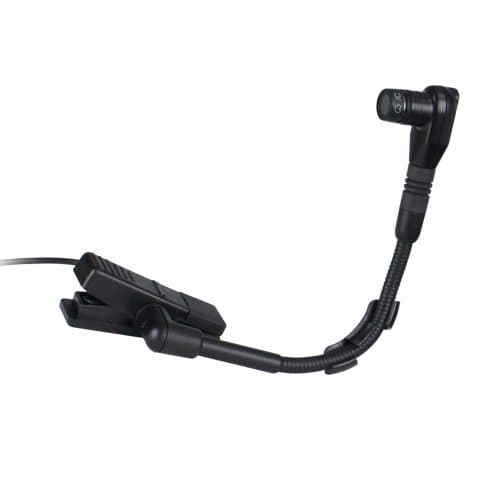

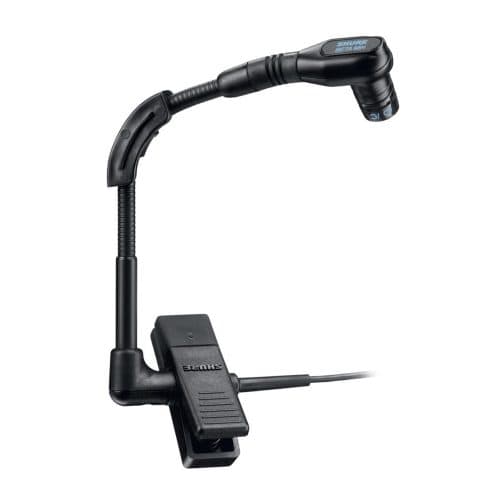

B98H/C Miniature Instrument Microphone

The BETA 98H/C delivers high gain-before-feedback and rejection of unwanted noise. Also, it features preamplifier circuitry to improve linearity across the full frequency range, and tailored response for natural sound reproduction.

Characteristics of the BETA 98H/C

The BETA 98H/C has a tailored frequency response of 20Hz – 20KHz and a high maximum sound pressure level of 132dB (SPL). It has a cardioid pickup pattern providing high gain before feedback. It includes a 3 m (10ft) high-flex cable which is attached to the preamplifier. The pre-amp requires phantom power and connects to your mixer via an XLR connection.

Shure GLXD14+B98 Extras in the Box:

• 1 PS43 Power Supply
• 1 SB904 Lithium-Ion Rechargeable Battery
• 1 Black Carrying Case

Features

• For Wind & Percussion Players
• B98H/C Clip-On Instrument Microphone
• Lightweight Bodypack Transmitter
• Portable Tabletop Receiver
• Auto Scans 2.4 and 5.8 GHz Frequencies
• Easy Setup with Auto Pairing
• 208.5 MHz Total Bandwidth
• Fixed Front-Panel Antennas
• Front Panel Charges 12-Hr SB904 Battery
• Expandable to 4 Mic Channels/100′ Range
• Transformerless preamplifier circuitry which improves linearity across the full frequency range.
• The pickup pattern provides high gain-before-feedback and excellent rejection of unwanted noise.
• Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments.
• The Beta 98H/C features a 3 m (10 ft.) high-flex cable with an attached preamplifier (XLR connection)
• Tailored frequency response for open, natural sound reproduction
• Compact, lightweight construction provides a low degree of visibility
• Gooseneck, ratcheting swivel joint and gooseneck angle brace allow for optimum placement and fixed positioning

Spec

System

Wireless Technology: Digital 2.4 GHz/5.8 GHz
Included Transmitters: 1 x Bodypack
Diversity: True Digital Diversity
RF Frequency Band: Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF Bandwidth: 208.5 MHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 100′ / 30.5 m (Line of Sight)
Max Transmitters per Band: 8
Latency: 4.5 to 8 ms
Dynamic Range: 120 dBA
Modulation: Proprietary

Receiver

Receiver Type: Tabletop
Antenna: 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels: 1
Audio I/O: 1 x XLR 3-Pin Male Balanced Mic/Line Output, 1 x 1/4″ TRS Female Balanced Output
Audio Output Level: XLR Output: +1 dBV (Line Level), 1/4″ Output: +8.5 dBV
Phantom Power Protection: On 1/4″, XLR Outputs
Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity: 1 x USB-C Female (Firmware Update)
Impedance: XLR Output: 100 Ohms (Balanced) 1/4″ Output: 100 Ohms (Balanced) 50 Ohms (Unbalanced)
RF Output Power: 10 mW (EIRP, Max)
Spurious: Rejection: >35 dB
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 14.5 to 17 VDC at 600 mA (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Display & Indicators: 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing: ABS
Operating Temperature: 32 to 113°F / 0 to 45°C
Dimensions: 183 x 40 x 122 mm
Weight: 310 g

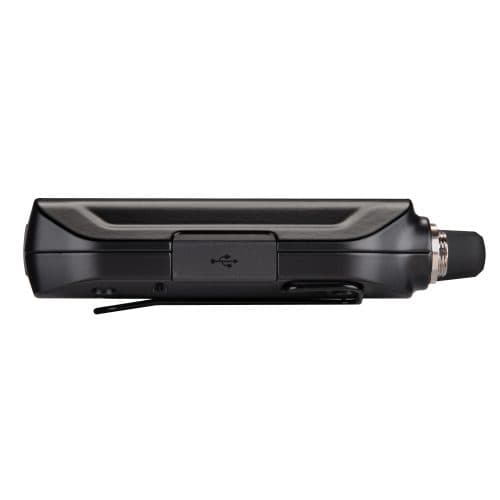

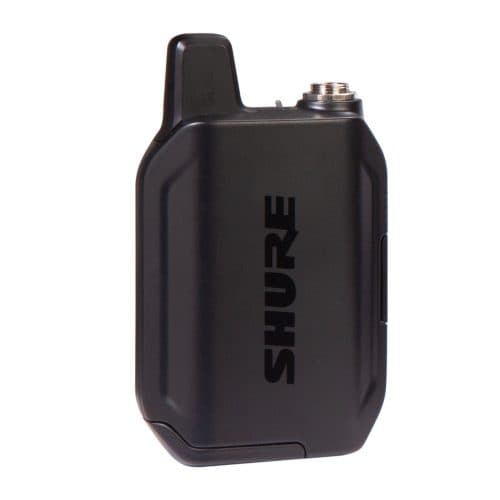

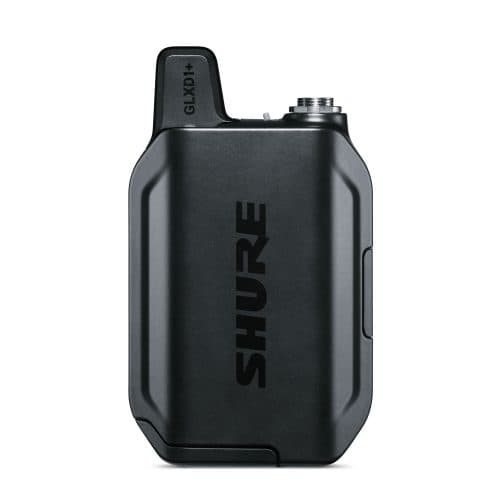

Transmitter

Transmitter Type: Bodypack
RF Output Power: 10 mW (EIRP)
Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Plug-In Power: 5 V
Muting: Off/On Switch
Audio Input Level: -8.4 dBV / 7.5 V p-p
Gain Range: -20 to +40 dB (1 dB Steps)
Sync Method: Proprietary
Antenna: 1 x Internal, Fixed (Beltpack)
Power Requirements: Battery
Battery Type: 1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity: 2420 mAh
Battery Charging Time: .25 to 3 Hours
Approx. Battery Life: 12 Hours (Lithium Rechargeable)
USB/Lightning I/O: 1 x USB-C (Charging)
Display & Indicators: 1 x LED (Battery Status, Sync)
Housing: Metal
Dimensions: 67 x 115 x 28.5 mm
Weight: 153.1 g (without Batteries)

Microphone

Microphone Type: Clip-On Instrument
Colour: Black
Sound Field: Mono
Capsule: Electret Condenser
Polar Pattern: Cardioid
Frequency Range: 20 Hz to 20 kHz
SNR: 63 dB
Equivalent Noise Level: 31 dB A-Weighted
Maximum SPL: 155 dB SPL
THD: 1%
Impedance: 150 Ohms
Sensitivity: -56 dBV/Pa
Dynamic Range: 124 dB
Outputs: 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
Cable Length: 1.6 m
