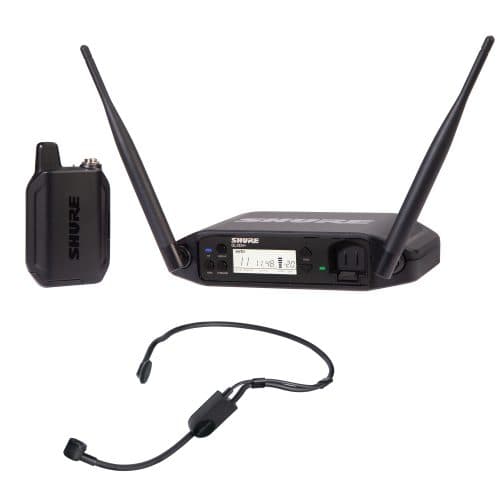

Shure GLXD14+P31 Wireless Headset Microphone with Receiver
The new GLX-D+ Dual Band Wireless Headset System features the PGA31 Headset Microphone for spoken word applications and the GLXD4+ tabletop receiver. Go wireless without complication.
Features
- For Presenters & Performers
- PGA31 Cardioid Headset Mic
- Lightweight Bodypack Transmitter
- Portable Tabletop Receiver
- Auto Scans 2.4 and 5.8 GHz Frequencies
- Easy Setup with Auto Pairing
- 208.5 MHz Total Bandwidth
- Fixed Front-Panel Antennas
- Front Panel Charges 12-Hr SB904 Battery
- Expandable to 4 Mic Channels/100′ Range
Spec
System
Wireless Technology: Digital 2.4 GHz/5.8 GHz
Included Transmitters: 1 x Bodypack
Diversity: True Digital Diversity
RF Frequency Band: Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF Bandwidth: 208.5 MHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 100′ / 30.5 m (Line of Sight)
Max Transmitters per Band: 8
Latency: 4.5 to 8 ms
Dynamic Range: 120 dBA

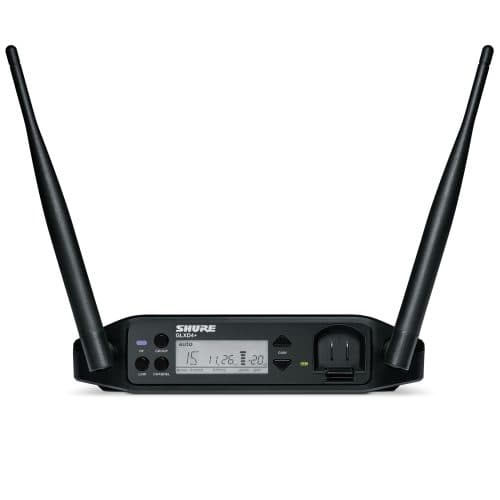

Receiver
Receiver Type: Tabletop
Antenna: 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels: 1
Audio I/O: 1 x XLR 3-Pin Male Balanced Mic/Line Output, 1 x 1/4″ TRS Female Balanced/Unbalanced Output
Gain Range: -20 to +40 dB (1 dB Steps)
Audio Output Level XLR Output: +1 dBV
1/4″ Output: +8.5 dBV
Phantom Power Protection: On 1/4″, XLR Outputs
Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity: 1 x USB-C Female (Firmware Update)
Impedance: XLR Output: 100 Ohms (Balanced) 1/4″ Output: 100 Ohms (Balanced), 50 Ohms (Unbalanced)
RF Output Power: 10 mW (EIRP, Max)
Spurious: Rejection: >35 dB
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 14.5 to 17 VDC at 600 mA (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Display & Indicators: 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing: ABS
Operating Temperature: 32 to 113°F / 0 to 45°C
Dimensions: 183 x 40 x 122 mm
Weight: 310 g

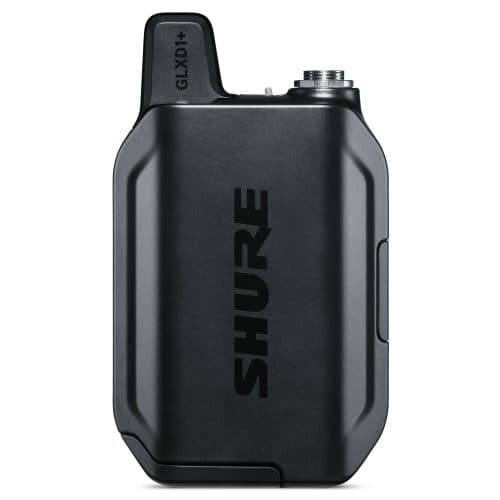

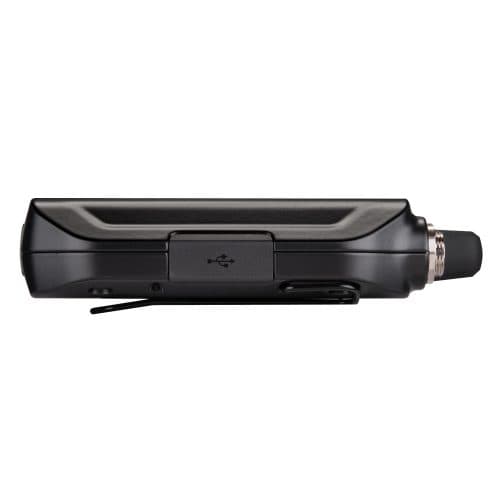

Transmitter
Transmitter Type: Bodypack
RF Output Power: 10 mW (EIRP)

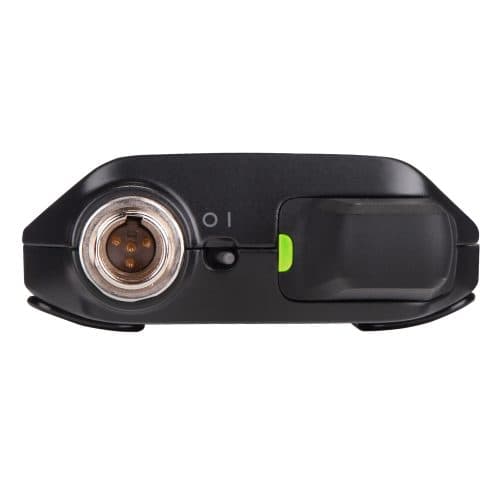

Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Plug-In Power: 5 V
Muting: Off/On Switch
Audio Input Level: -8.4 dBV / 7.5 V p-p
Gain Range: -20 to +40 dB (1 dB Steps)
Sync Method: Proprietary
Antenna: 1 x Internal, Fixed (Beltpack)
Power Requirements: Battery
Battery Type: 1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity: 2420 mAh
Battery Charging Time: .25 to 3 Hours
Approx. Battery Life: 12 Hours (Lithium Rechargeable)
USB/Lightning I/O: 1 x USB-C (Charging)
Display & Indicators: 1 x LED (Battery Status, Sync)
Housing: Metal
Dimensions: 67 x 115 x 28.5 mm (without Antennas)
Weight: 153.1 g (without Batteries)
Microphone
Microphone Type: Headset
Colour: Black
Sound Field: Mono
Capsule: Electret Condenser
Polar Pattern: Cardioid, Unidirectional
Frequency Range: 60 Hz to 20 kHz
SNR: 66 dB
Equivalent Noise Level: 28 dB A-Weighted
Maximum SPL: 145 dB SPL
THD: < 3%
Impedance: 600 Ohms
Dynamic Range: 117 dB
Output: 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
Cable Length: 4.3′ / 1.3 m
Operating Voltage: 5 to 10 V
Operating Current Consumption: 40 µA
Weight: 45 g
