Shure GLXD14+ Wireless Digital Guitar System

Shure GLXD14+ Wireless Digital Guitar System with Integrated Tuner

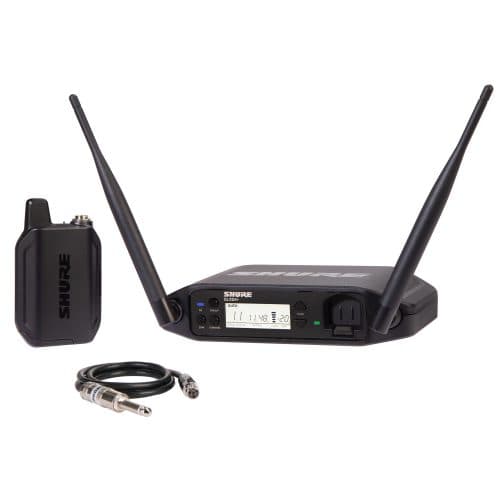

The new GLXD14+ Dual Band Wireless Bodypack System features the WA302 guitar cable and the GLXD4+ tabletop receiver.

Go Wireless Without Complication.

With the new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth. Furthermore, it intelligently avoids interference for reliable, dropout-free audio. The GLXD14+ features smart rechargeability with up to 12 hours of runtime. Also, the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.

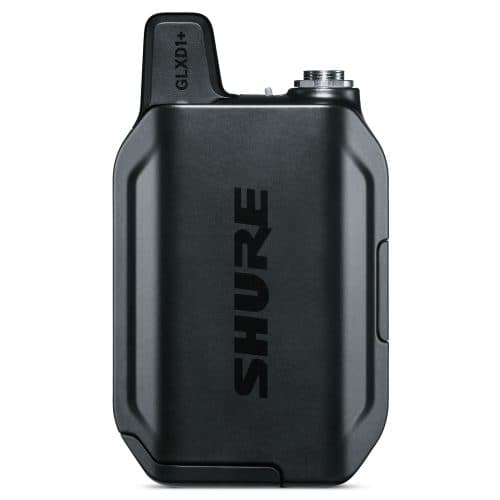

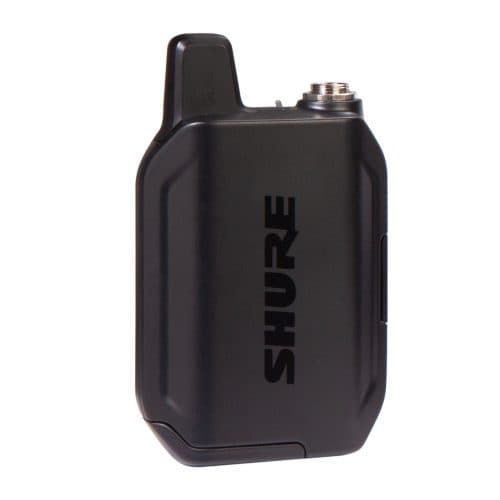

GLXD1+ Digital Wireless Dual-Band Bodypack Transmitter

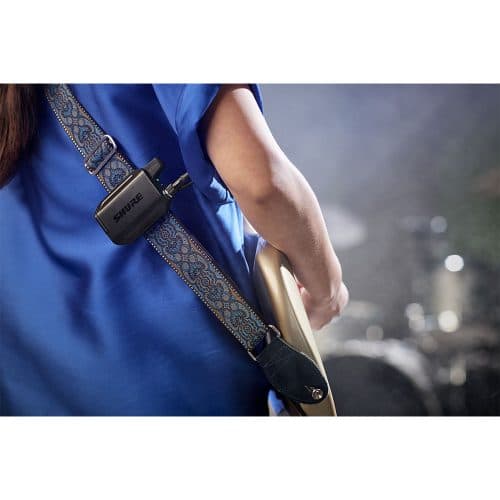

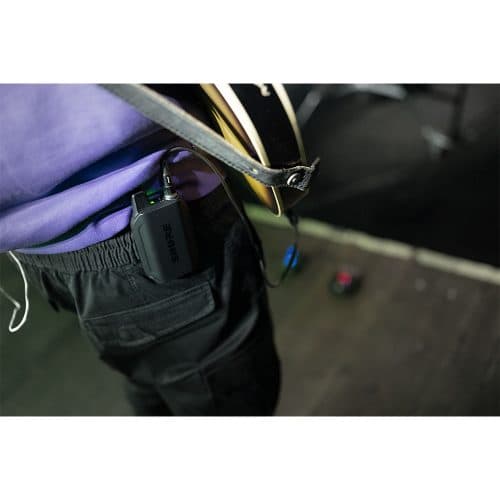

Additionally, the GLXD1+ Dual Band Bodypack Transmitter has a rugged, metal construction with an ergonomic design and reversible belt clip to fit comfortably and snugly in various positions.

Ready-To-Go. Every time. Automatically

Lastly, the GLXD1+ is compatible with an instrument cable, and a variety of headset and Lavalier microphone options.

GLXD14+ Extras In the Box:

• 1 PS43 Power Supply
• 1 SB904 Lithium-Ion Rechargeable Battery
• 1 WA302 Instrument Cable (TA4F to 1/4″)
• 1 Black Carrying Case

Features

• For Presenters and Performers
• WA302 Guitar Cable
• Lightweight Bodypack Transmitter
• Portable Tabletop Receiver
• Auto Scans 2.4 and 5.8 GHz Frequencies
• Easy Setup with Auto Pairing
• 208.5 MHz Total Bandwidth
• Fixed Front-Panel Antennas
• Front Panel Charges 12-Hr SB904 Battery
• Expandable to 4 Mic Channels/100′ Range

Spec

System

Wireless Technology Digital: 2.4 GHz/5.8 GHz
Included Transmitters: 1 x Bodypack
Diversity: True Digital Diversity
RF Frequency Band: Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF Bandwidth: 208.5 MHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 100′ / 30.5 m (Line of Sight)
Max Transmitters per Band: 8
Latency: 4.5 to 8 ms
Dynamic Range: 120 dBA
Modulation: Proprietary

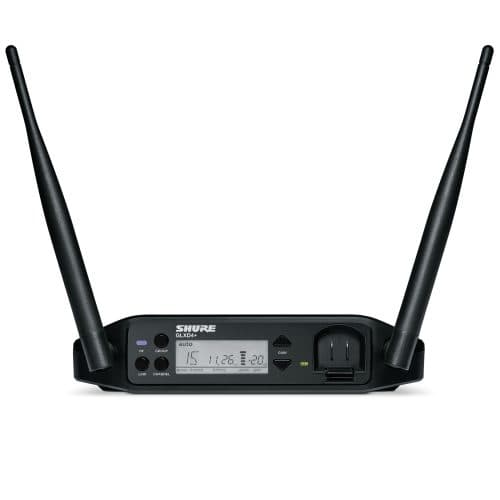

Receiver

Receiver Type: Tabletop
Antenna: 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels: 1
Audio I/O: 1 x XLR 3-Pin Male Balanced Mic/Line Output, 1 x 1/4″ TRS Female Balanced Output
Audio Output Level: XLR Output: +1 dBV (Line Level), 1/4″ Output: +8.5 dBV
Phantom Power Protection: On 1/4″, XLR Outputs
Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity: 1 x USB-C Female (Firmware Update)
Impedance: XLR Output: 100 Ohms (Balanced) 1/4″ Output: 100 Ohms (Balanced) 50 Ohms (Unbalanced)
RF Output Power: 10 mW (EIRP, Max)
Spurious: Rejection: >35 dB
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 14.5 to 17 VDC at 600 mA (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Display & Indicators: 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing: ABS
Operating Temperature: 32 to 113°F / 0 to 45°C
Dimensions: 183 x 40 x 122 mm
Weight: 310 g

Transmitter

Transmitter Type: Bodypack
RF Output Power: 10 mW (EIRP)

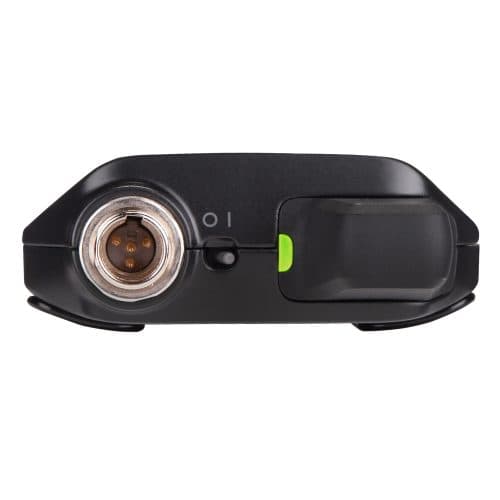

Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Plug-In Power: 5 V
Muting: Off/On Switch
Audio Input Level: -8.4 dBV / 7.5 V p-p
Gain Range: -20 to +40 dB (1 dB Steps)
Sync Method: Proprietary
Antenna: 1 x Internal, Fixed (Beltpack)
Power Requirements: Battery
Battery Type: 1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity: 2420 mAh
Battery Charging Time: .25 to 3 Hours
Approx. Battery Life: 12 Hours (Lithium Rechargeable)

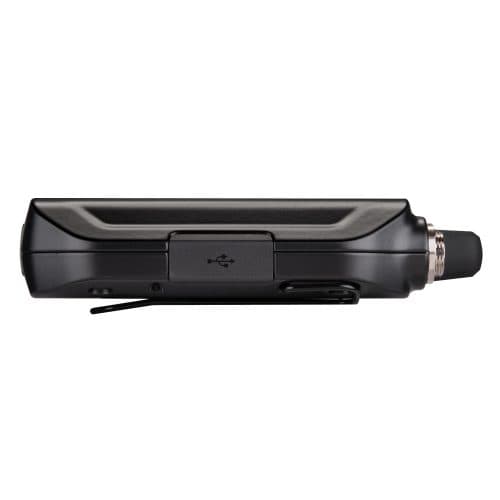

USB/Lightning I/O: 1 x USB-C (Charging)
Display & Indicators: 1 x LED (Battery Status, Sync)
Housing: Metal
Dimensions: 67 x 115 x 28.5 mm
Weight: 153.1 g (without Batteries)
