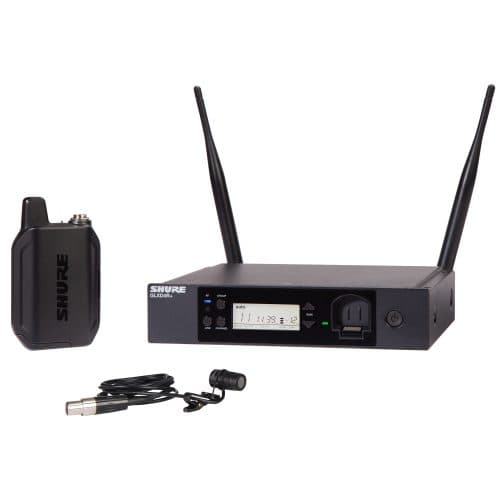

Shure GLXD14R+85 Dual-Band Wireless Presenter Rack System
The new Shure GLXD14R+85 Dual Band Wireless Rack System features the premium wearable WL185 lavalier microphone for spoken word applications and the GLXD4R+ half-rack receiver.
Features
Wireless Technology: Digital 2.4 GHz/5.8 GHz
Included Transmitters: 1 x Bodypack
Diversity: True Digital Diversity
RF Frequency Band: Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF Bandwidth: 208.5 MHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 100′ / 30.5 m (Line of Sight)
Max Transmitters per Band: 8
Latency: 4.5 to 8 ms
Dynamic Range: 120 dBA
Modulation: Proprietary

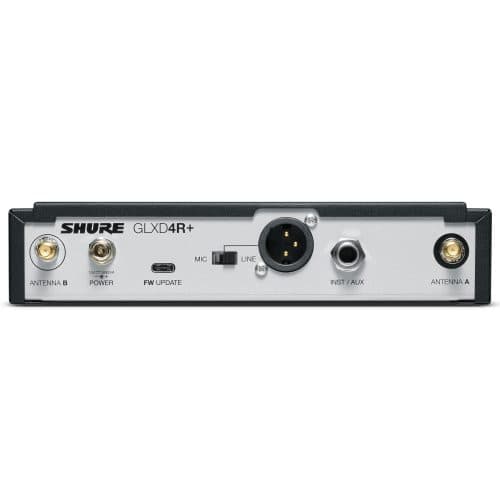

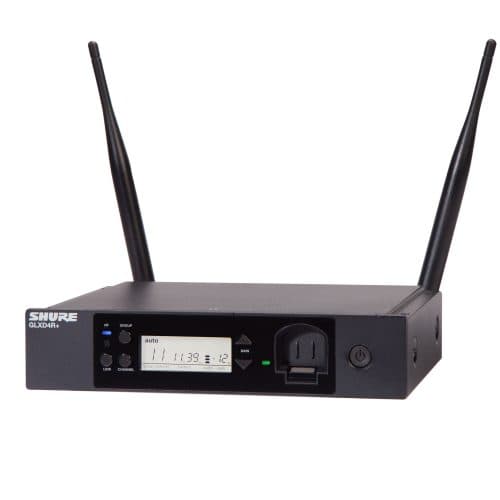

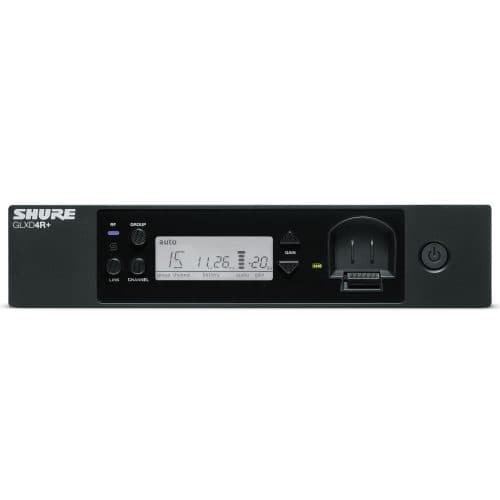

Receiver
Receiver Type: Rackmount
Mounting Options: Rackmount (with Included Hardware)
Rackmount Size: 1 RU (1/2 Rack)
Antenna: 2 x 1/2 Wave Sleeve Dipole, Detachable (Rear-Mount)
Number of Audio Channels: 1
Audio I/O: 1 x XLR 3-Pin Male Balanced Mic/Line Output, 1 x 1/4″ TRS Female Balanced Output
Gain Range: -18 to +42 dB (1 dB Steps)
Pad: 30 dB
Audio Output Level: XLR Output: +18 dBV (Line Level)
XLR Output: -12 dBV (Mic Level)
1/4″ Output: +12 dBV
Phantom Power Protection: On 1/4″, XLR Outputs
Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity: 1 x USB-C Female (Firmware Update)
Impedance:
XLR Output: 100 Ohms (Balanced)
1/4″ Output: 100 Ohms (Balanced), 50 Ohms (Unbalanced)
RF Output Power: 10 mW (EIRP, Max)
Spurious: Rejection: >35 dB
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 14.5 to 17 VDC at 600 mA (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Display & Indicators: 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing: Steel
Operating Temperature: 32 to 113°F / 0 to 45°C
Dimensions: 197 x 42 x 163 mm
Weight: 866 g
Microphone
Microphone Type: Lavalier
Colour: Black
Sound Field: Mono
Capsule Electret: Condenser
Polar Pattern: Cardioid
Frequency Range: 50 Hz to 17 kHz
Equivalent Noise Level: 28 dB A-Weighted
Maximum SPL: 130.5 dB SPL
Impedance: 1.8 Kilohms
Sensitivity: -45.5 dBV/Pa
Dynamic Range: 102.5 dB
Outputs: 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
Cable Length: 1.2 m
Operating Voltage: 1.5 to 10 V

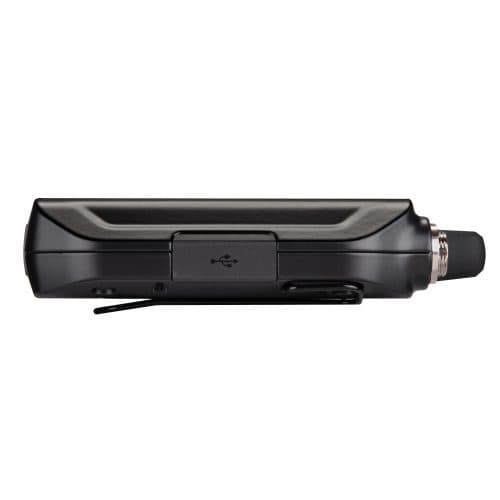

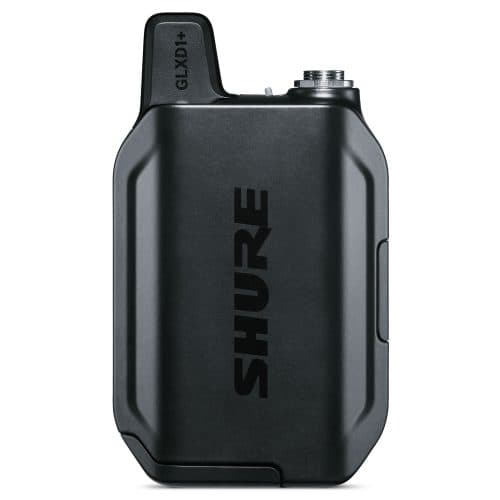

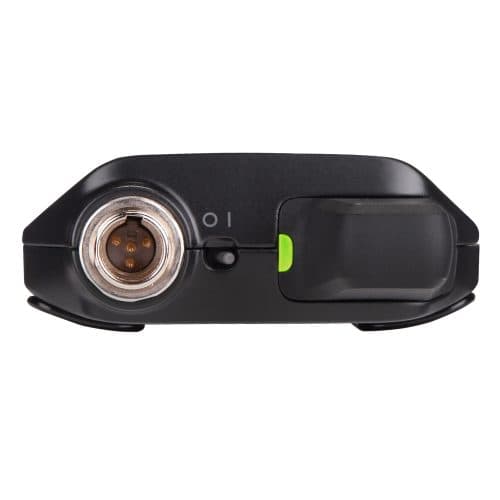

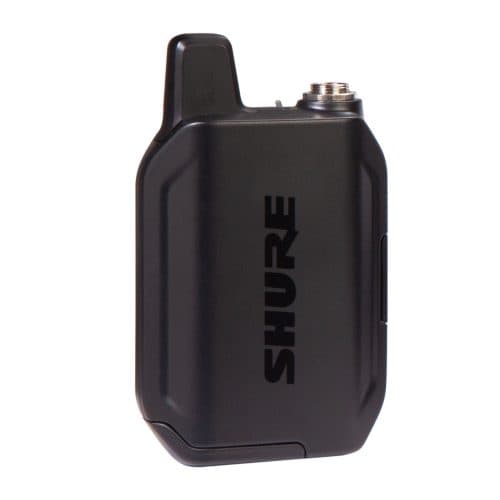

Transmitter
Transmitter Type: Bodypack
RF Output Power: 10 mW (EIRP)
Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Plug-In Power: 5 V
Muting: Off/On Switch
Audio Input Level: -8.4 dBV / 7.5 V p-p
Gain Range: -18 to +42 dB
Sync Method: Proprietary
Antenna: 1 x Internal, Fixed (Beltpack)
Power Requirements: Battery
Battery Type: 1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity: 2420 mAh
Battery Charging Time: .25 to 3 Hours
Approx. Battery Life: 12 Hours (Lithium Rechargeable)
USB/Lightning I/O: 1 x USB-C (Charging)
Display & Indicators: 1 x LED (Battery Status, Sync)
Housing: Metal
Dimensions: 67 x 115 x 28.5 mm
Weight: 153.1 g (without Batteries)
