Shure GLXD14R+MX53 Digital Wireless Rack System with MX153

Shure GLXD14R+MX53 Digital Wireless Rack System with MX153 Headset Microphone

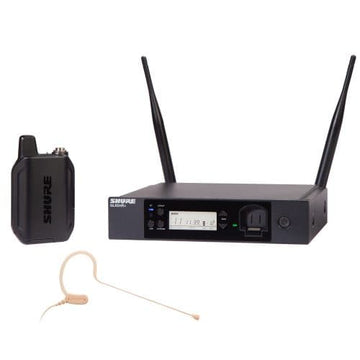

The new GLX-D+ Dual Band Wireless Rack System features the premium MX153 Headworn Earset for high-quality vocal performance applications and the Shure GLXD14R+MX53 half-rack receiver.

Ready-To-Go. Every time. Automatically.

The GLXD14R+MX53 provides the perfect combination of automatic frequency management with the new Dual Band Technology which provides reliable and consistent performance. Also, the Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

GLXD14R+MX53 Extras In The Box:

• 1 PS43 Power Supply
• 1 SB904 Lithium-Ion Rechargeable Battery
• 1 Zippered Vinyl Bag
• 1 Rack-mount Hardware

Features

• For Presenters & Lecturers
• MX153 Omnidirectional Earset Mic
• Lightweight Bodypack Transmitter
• Metal Half-Rack Receiver
• Auto Scans 2.4 and 5.8 GHz Frequencies
• Easy Setup with Auto Pairing
• 208.5 MHz Total Bandwidth
• Removable Rear-Panel Antennas
• Front Panel Charges 12-Hr SB904 Battery
• Expandable to 11 Mic Channels/100′ Range

Spec

System
Wireless Technology: Digital 2.4 GHz/5.8 GHz
Included Transmitters: 1 x Bodypack
Diversity: True Digital Diversity
RF Frequency Band: Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF Bandwidth: 208.5 MHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 100′ / 30.5 m (Line of Sight)
Max Transmitters per Band: 8
Latency: 4.5 to 8 ms
Dynamic Range: 120 dBAModulation Proprietary

Receiver
Receiver Type: Rackmount
Mounting Options: Rackmount (with Included Hardware)
Rackmount Size: 1 RU (1/2 Rack)
Antenna: 2 x 1/2 Wave Sleeve Dipole, Detachable (Rear-Mount)
Number of Audio Channels: 1
Audio I/O: 1 x XLR 3-Pin Male Balanced Mic/Line Output, 1 x 1/4″ TRS Female Balanced Output
Gain Range: -18 to +42 dB (1 dB Steps)
Pad: 30 dB
Audio Output Level: XLR Output: +18 dBV (Line Level)
XLR Output: -12 dBV (Mic Level)
1/4″ Output: +12 dBV
Phantom Power Protection: On 1/4″, XLR Outputs
Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity: 1 x USB-C Female (Firmware Update)
Impedance:
XLR Output: 100 Ohms (Balanced)
1/4″ Output: 100 Ohms (Balanced), 50 Ohms (Unbalanced)
RF Output Power: 10 mW (EIRP, Max)
Spurious: Rejection: >35 dB
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 14.5 to 17 VDC at 600 mA (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Display & Indicators: 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing: Steel
Operating Temperature: 32 to 113°F / 0 to 45°C
Dimensions: 197 x 42 x 163 mm
Weight: 866 g

Transmitter
Transmitter Type: Bodypack
RF Output Power: 10 mW (EIRP)
Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Plug-In Power: 5 V
Muting: Off/On Switch
Audio Input Level: -8.4 dBV / 7.5 V p-p
Gain Range: -18 to +42 dB (1 dB Steps)
Sync Method: Proprietary
Antenna: 1 x Internal, Fixed (Beltpack)
Power Requirements: Battery
Battery Type: 1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity: 2420 mAh
Battery Charging Time: .25 to 3 Hours
Approx. Battery Life: 12 Hours (Lithium Rechargeable)
USB/Lightning I/O: 1 x USB-C (Charging)
Display & Indicators: 1 x LED (Battery Status, Sync)
Housing: Metal
Dimensions: 67 x 115 x 28.5 mm (without Antennas)
Weight: 153.1 g (without Batteries)

Microphone
Microphone Type: Earset
Colour: Black
Sound Field: Mono
Capsule Electret: Condenser
Polar Pattern: Omnidirectional
Frequency Range: 20 Hz to 20 kHz
SNR: 60 dB
Equivalent Noise Level: 34 dB A-Weighted
Maximum SPL: 107 dB SPL
THD: < 1%
Sensitivity: -41 dBV/Pa at 1 kHz
Dynamic Range: 73 dB
Output: 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
Cable Length: 4′ / 1.2 m
Operating Voltage: 1 to 5 V
Operating: Current Consumption 500 µA
Operating Temperature: 0 to 134°F / -18 to 57°C
Weight: 19.8 g
