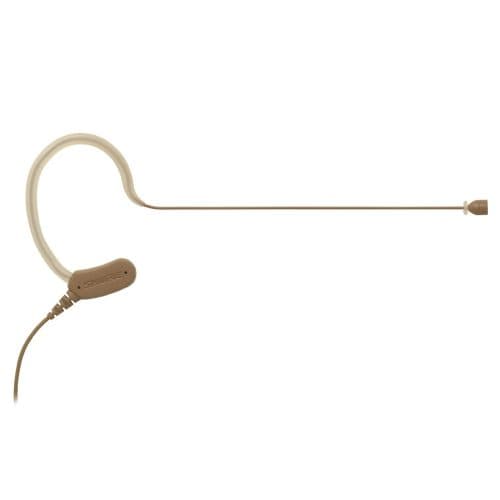

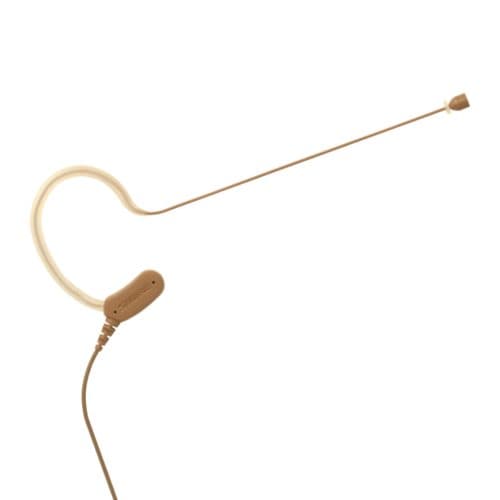

Shure MX153CO-TQG Earset Headworn Microphone – Cocoa
Shure MX153CO-TQG earset headworn omnidirectional microphone delivers exceptional speech clarity and enhanced plosive protection with no proximity effect. It features CommShield technology to stop RF interference, 3 windscreens and a protective pouch.
Features
- Subminiature, omnidirectional cartridge offers superior speech clarity and enhanced plosive protection with no proximity effect
- Terminated with TQG/TA4F connector for direct connectivity to Shure wireless bodypack transmitters
- Ultra-lightweight, comfortable, flexible design is stable and easy to place over either ear
- CommShield® Technology guards against interference from cellular RF devices and digital bodypack transmitters
- Reinforced, attached soft flex cable
- Matte black, tan, and cocoa colour options available

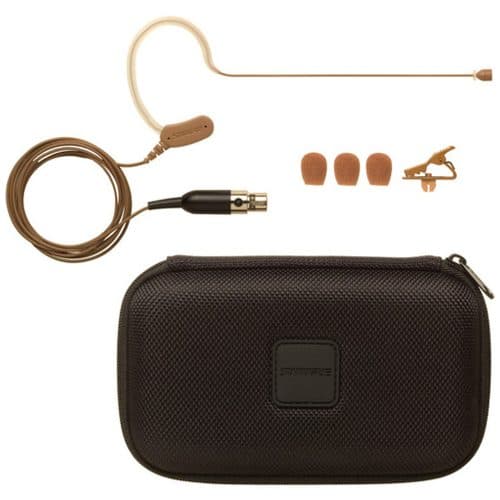

- Includes protective storage pouch, 3 windscreens, and collar clip
Spec
Transducer Type: Electret Condenser
Polar Pattern: Omnidirectional
Frequency Response: 20 to 20,000 Hz
Output Impedance: N/A
Sensitivity: open circuit voltage, @ 1 kHz, typical -41 dBV/Pa [1] (9 mV/Pa)
Maximum SPL: 1 kHz at 1% THD [2]
2500 Ω load 107 dB SPL
1000 Ω load 107 dB SPL
Signal-To-Noise Ratio [3]
60 dB
Dynamic Range @ 1 kHz:
2500 Ω load: 73 dB
1000 Ω load: 73 dB
Self Noise: equivalent SPL, A-weighted, typical 34 dB
Common Mode Rejection: 20 to 20,000 Hz N/A
Operating Temperature Range: -18°C (0°F) to 57°C (135°F)
Polarity: Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1.
Power Requirements: +1–5 V DC (500 µA max.)
Weight: 19.76
