Vonyx VXA-800 – Two Channel 400W PA Power Amplifier (2x 400W)
Vonyx VXA-800 – Two Channel 400W PA Power Amplifier
The Vonyx VXA-800 is a high-quality Two-Channel 400W Stereo Power Amplifier for powering your PA system or subwoofers. It features both stereo and bridge modes utilising SMT technology that allows for stable high power output without issues. The high build quality also allows the amp to have a wider frequency response and low noise level, meaning you get a cleaner full-range signal. The VXA-800 is 19″ rack-mountable and is ideal for use in disco’s, bars, clubs, on stage and in the studio.
The VXA-800 has a Signal-to-Noise Ratio of 90dB and an Impedance of 20kOhms. This front to rear forced airflow amplifier allows you to power your Pro Audio Gear at: (2x 400W 4Ω Stereo), (2x 300W 8Ω Stereo) or (2x 800W 8Ω Bridged).
Essential control and Amplifier feedback

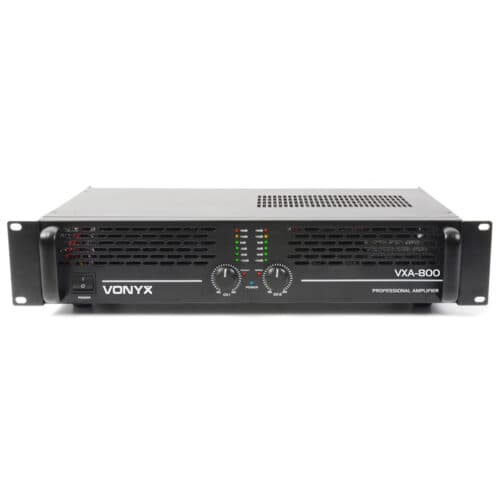

The front panel of the VXA-800 provides essential control and feedback on the performance of the amplifier. Aside from the Power Switch, you will find two independent Volume Controls for each of the two channels. Also present are Signal indicators, Clip indications and Protection Indication. The Signal Indicator has three orange LEDs that indicate the amplifiers output signal levels. Clip Indication LEDs will light up when one or both channels are on max power. It can occur that these LEDs will light up now and then however this is not a problem. But if it lights up continuously then you need to adjust the volume down, otherwise, permanent damage to the equipment may occur.
The VXA-800 also features a Protect Indication that provides feedback on something damaging that might occur to your amplifier. The protection system will switch into protect mode when it detects a fault. The amplifier will disconnect at the point where the damage is about to occur and switch on the protection led to indicate to you that something is wrong. Common reasons such as Bad Ventilation, A low impedance (< 4 Ohm), Defect fan(s), or a short circuit in cables will trigger the protection.
VXA-800 Input Types
The rear panel of the VXA-800 offers a multitude of Input and Output options. Two 6.3mm jack female input connectors are present for connecting a signal source such as a mixer. Alternatively, you can use the two RCA input connectors for connecting a signal source. The VXA-800 can use in 2x different modes such as stereo & bridge modes. The Stereo mode offers Standard left/right stereo mode as Bridge Mode combines both amps on one channel which results in double power on this channel. It connects the signal to the left input channel and the output level can now be adjusted with the left volume control.
The Ground Lift Switch allows for circuit and chassis grounds to be separated in case of a problem with earth loops. This often results in a hum present during amplification.
Output Connection Options
The VXA-800 provides 2x 6.3mm Jack Outputs with a maximum load in the Stereo Mode of 4 Ohm per channel. You can also use the Binding Post Output Jacks with a maximum load in the Stereo Mode of 4 Ohm per channel. Alternatively, the maximum load in bridge mode is 8 Ohm.
You can also take advantage of the 2x NL4 Speaker Outputs. Here the maximum load in Stereo Mode is 4 Ohm per channel. Lastly, the are Cooling Vent Outlets present, a Mains Power Connector and a Fuse that secures the amplifier and wires against defects.
Features
- High quality 2x 400W stereo amplifier
- Stereo and bridge mode
- Clip LEDs for indicating overload
- Ground lift switch
- Perfect DC output protection
- 19″ Rack-mountable
- RCA and 6.3mm Jack inputs
- NL4 speaker connectors, 6.3mm Jack and Terminal outputs
Spec
Brand: Vonyx
Output channels: 2
Output power: @ 4 Ohm per channel: 400W
Output power: @ 8 Ohm per channel: 300W
Output power: @ 8 Ohm bridged: 800W
Speaker connections: 6.3mm jack, Speaker screw terminal
Input Connections: 6.3mm Jack, RCA
Output connections: 6.3mm Jack, NL-4
Frequency response: 10Hz – 20.000Hz
Crosstalk: >70dB
Signal-to-noise ratio: >90dB
Damping Factor: >250
Slew rate: 30V/uS
Input sensitivity line: 775mV – 1.2V
Input impedance: 20 kOhm
Power supply: 220-240VAC 50Hz
Dimensions (L x W x H): 482 x 295 x 88mm
19 Inch: Yes
Weight: 7.3 kg
