Vonyx WM55 – Wireless Microphone Plug-and-Play UHF

Vonyx WM55 Wireless Microphone Plug-and-Play UHF

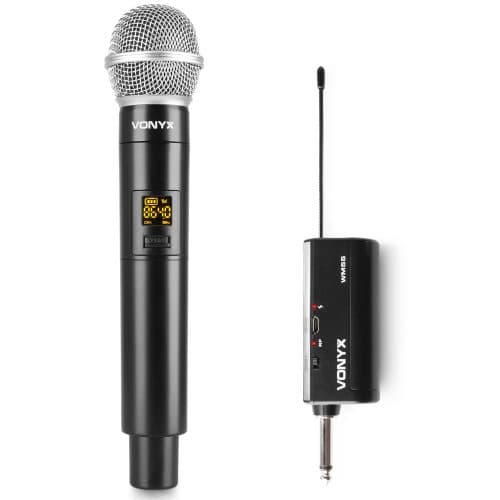

The Vonyx WM55 is a wireless microphone system consisting of a wireless handheld microphone and a plug-in receiver. It also features a digital display with selectable multi-channel microphone frequencies. The WM55 includes a built-in acoustic pop filter and is a reliable microphone system delivering distortion-free performance. It operates at a narrow UHF band of UHF 568 – 582 MHz and performs at an effective distance between 30 and 50m.

The WM55 is designed to minimize or eliminate distortion. As a result,  it reduces unwanted noise and operates at a narrow UHF band. It also offers 10x different channels to choose from with a simple plug-and-play operation. Therefore it’s ideal for stage and studio performance and you can connect the WM55 to amplifiers, stereos, audio processors, DJ mixers, and more.

Overview and Simple Operation

The WM55 microphone offers a robust Grille, Digital Display, Frequency Switch and a Battery compartment for (2x) AA 1.5Volt Batteries. The receiver also provides you with a USB charge port, Charge Indicator and UHF antenna. There is also a Battery Compartment for (1x) 18650 3.7Volt Battery.

To use the WM55 system just open the battery cover of the microphone receiver and insert the supplied battery. Charge the battery of the receiver using the supplied USB cable via the USB charging port. Then screw the battery cover of the microphone and insert (2x) AA 1.5Volt batteries. The polarity should be taken into consideration. Just place the receiver into the 6.3 mm microphone jack. You can now connect a mixer, active speaker or amplifier.

Finally, switch on the receiver and microphone and the synchronisation between the microphone and receiver is automatic. If the channel is busy or interfering, the WM55 offers the ability to change it manually by pressing the selector switch.

Features

• Handheld wireless microphone and plug-in receiver
• Digital display with selectable microphone frequency (multi-channel)
• UHF narrow-band: 863 – 865MHz
• Effective distance: 30 – 50m
• Reliable distortion-free performance
• Auto mute and shock cancellation circuit
• Built-in acoustic pop filter
• Receiver with rechargeable battery (included)
• The handheld microphone is battery operated (2x 1.5V/AA, excl.)

Spec

Brand: Vonyx

Output connections: 6.3mm Jack

Frequency range: 568.000 – 582.000 MHz

Frequency response: 40Hz – 18.000Hz

Frequency stability: 0.001%

RF output: 10dBm

Signal-to-noise ratio: >90dB

THD: <0,5%

Output level: Master: 300mV

Batteries: 1.5V (1x AA)

Power supply: 3.7V (18650 Li-ion)

Dimensions: Receiver: 115 x 35 x 25mm

Dimensions: Microphone: ø52 x 245mm

Weight: 0.4 kg
